Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

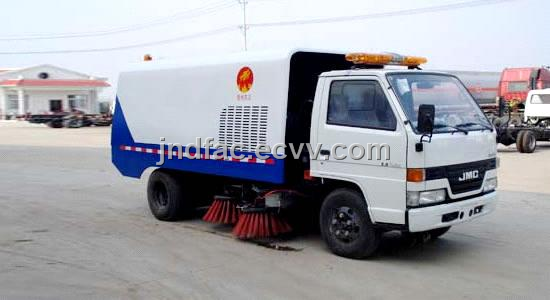

JMC Sweeping Truck
| FOB Price: | 30,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | within 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | according to customer's demand |
Specifications
| Technical specification | |||
| Producat Name | JMC sweeping truck | Overall dimension | 5800×1985×2350(mm) |
| Chassis Model | JX1060TG23 | Cargo body Dimension | ××(mm) |
| Total mass | 5790(Kg) | Approach/Departure angle | 27/18(°) |
| Rated mass | 1050(Kg) | front/rear suspension | 1015/1425(mm) |
| Curb mass | 4610(Kg) | Max speed | 95(km/h) |
| Engine | Engine manufacturer | Displacement (ml) | Power(kw) |
| JX493ZLQ3 JX493ZLQ3A | JMC AUTO | 2771 2771 | 85 75 |
| Emission standard | GB17691-2005, GB3847-2005 Euro Ⅲ | ||
| Axle No. | 2 | front tread | 1385/1425(mm) |
| Wheelbase | 3360 mm | rear tread | 1425(mm) |
| Tyre No. | 6 | tyre size | 7. 00R16LT, 7. 00-16LT |
| Fuel type | Diesel | Spring(pcs) | 7/5+5 |
| Axle load | 2150/3640 | cab passenger | 2 |
| Special function |
Advantages and features:
1, highly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.
2, the imported hydraulic components were intergrated folded and conveniently controled by the electrical and hydraulic system in the cab.
3, stainless steel water tank and material tank are combined and no remained water in the water tank when working .
4, the sweeping device are hydraulic controled and can avoid intercollision. Automaticlly.
5, the postposition floating type suction nozzle have self-adjustment function to adapt to the bad road condition . And it is easy to debug and maintain..
6, the adjustable mist spray device can eliminate the second pollution as well as saving water.
7, streamline appearance , low oil oil consumption, low noise |
||
| Pictures | |||
