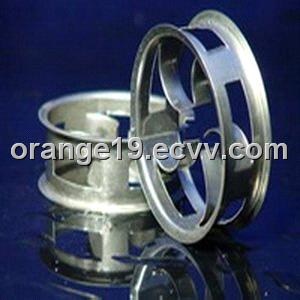

Metal Cascade Ring

FOB Price:	1.00 - 10.00 USD/Kilogram
Supply Ability:	5,000 Cubic Meter per Year
Shipping:	20 DAYS
Payment Terms:	L/C, D/A, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Jiangxi in China
Packaging Details:	wooden box and carton .Other packing is avaliable per your request.

Specifications

Detailed Product Description

1. 36 years professional experience for tower packing. 2. ISO 9001 Approveled 3. Available in a wide range material

Detailed Product Description

Reduced pressure drop Increased plant capacity Improved resistance to "fouling" Higher operational efficiency.

Widely used in desulphurization and decarburization system in compound ammonia plant, decompressed plant and so on.

Description: Metal ladder ring is a new type of hole-type packing , developed by British Mass Transfer Company, which draws the benefits of rasching ring and its height-diameter ratio is 1:2.By increasing cone flanging , it can reduce the resistance of gas and increase the indensity of packing and gas-liquid contact area, as well as help spread the liquid and the update the membrane surface constantly, so that mass transfer and separation efficiency has been enhanced greatly. Feature: The flux of General Ladder ring can be increased by 10-20% than that of pall ring , with pressure drop reduced by 30-40%, and separation efficiency in varying degrees depending on the specific process improvement. Depending on the circumstances, ladder ring may be able to replace raschig ring, pall ring, bubble-cap plates, valve plates and sieve to achieve efficiency, high-yielding as well as energy saving. Metal ladder ring can have a variety of materials, such as carbon steel, stainless steel 304, 304 L, 410, 316, 316 L, etc. To choose from.

Application: Ammonia decarbonization, desulfurization systems, atmospheric and vacuum distillation of crude oil separation unit, a variety of separation, such as methanol, separation, separation of organic acids uptake and desulfurization towers, etc.

Tachnical Parameter:

Name	Size	Diameter x Heightx Thickness mm	Surface area m2/ m³	Void space %	Bulk density kg/ m³	No,per m³	Packing factor m-1
Cascade ring	Φ 25	25x25x0.6	220	93	439	97160	273.5
	Φ 38	38x19x0.8	154.3	94	475.5	31890	185.8
	Φ 50	50x28x0.8	109.2	95	400	11600	127.4
