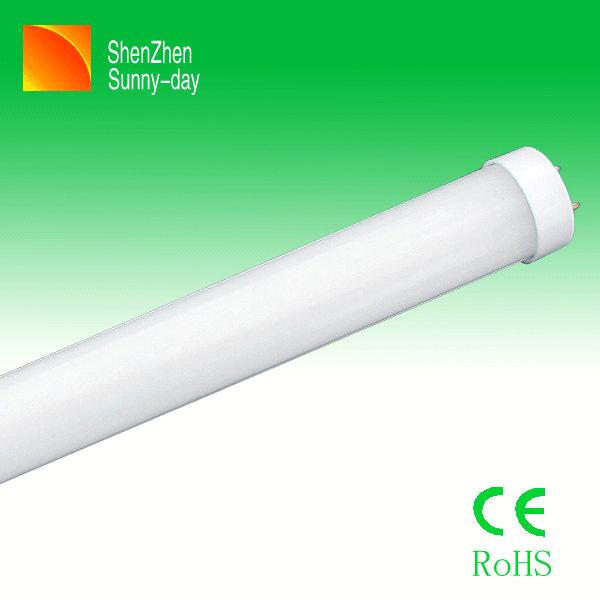

T10 Tube

Specifications

Led t8 light led t8 led tube

Advantage:

Easy for replacement

High luminous efficacity

Vision protection

High efficiency and energy saving

Durable and low temperature.

Specification:

1. T8 Led tube

2. Led source:

SMD 3528 Leds,Dia 26mm/Dia 30mm

Strawhat Leds,Dia 26mm/Dia 30mm

3. Led brand: Epistar

4. Length available: 60cm, 90cm, 120cm & 150cm available

5. Led Qty and Power and Luminious flux :

60cm-120pcs leds-8W-760±10%LM

90cm-180pcsleds-12W-1100±10%LM

120cm-240pcs leds-15W-1400±10%LM

120cm-288pcs leds-18W-1690±10%LM

120cm-300pcs leds-18W-1750±10%LM

150cm-330pcs leds-20W-1920±10%LM

6.Input voltage:AC85-265V

7.Led current:15-18mA

8.Power factor:0.85-0.99

9.Colors available:

cold white:7000-8000K, daily white (4000~4500K),

comercial White: 5500-6500K, warm white (2800~3300K)

10.Body material: aluminium profile&PC cover tube

11.PC cover kinds: Transparent cover

Frosted cover

Line-shape cover

12.CRI (color rendering index):74-90Ra

13.Lifespan:50.000-80.000hours

14. Light fading: 1000hours lighting decay less than3%

15.When test at 20mA current, each LED measures at 6.2-6.8 lumens

16.CE&RoHS approvals

17.Low heating, high reliability, high Consistency.High brightness and efficiency, energy saving, over 80% electricity saving than normal fluorescent lamp

18. Installation: replace conventional fluorescent after remove the ballast and starter.Easily install.

Application:

House lighting, factory lighting,Office lighting,subway lighting,landscape lighting, etc.
