Ningbo Xinzhou Welding Equipment Co., Ltd.
China Manufacturer with main products: Spot Welders, Projection Welders, Butt Welders, Row Welders, Seam Welders, Resistance Welders, Press Welders, Custom Welders |

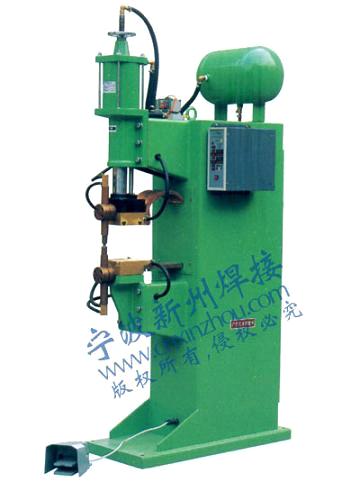

Spot Welder
| Supply Ability: | 100 Pound per Month |
|---|---|
| Shipping: | 20 days |
| Payment Terms: | T/T(Bank Transfer) |
| Place of Origin: | Zhejiang in China |
|---|---|
| Packaging Details: | wooden case |
Specifications
Spot welder, spot welding machine, spot welding equipment, resistance spot welder, resistance spot welding machine, spot press welder, projection welder, projection welding machine
Method named for welders:
Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency spot(projection) welders
P: rated capacity
1: lower arm can not be adjustable; 2: lower arm can be adjustable
L: throat depth, namely arms length
Features:
1, steady and firmed body of machine
2, Universal application
3, upper arm of machine is insulated, no short circuit.
4, transformer's material is copper, adopt water cooling, extend service life.
5, adopt fast cylinders.
6, can memorize 15 programs.
Applications:
Suitable for metal wire, electrical appliances manufacturing, metal plate process, micro-electron etc.
Main technical parameters:
|
Model
Unit
Item |
DTN-25 |
DTN-40 |
DTN-80-1 |
DTN-100-1 |
DTN-150-1 |
DTN-200-1 |
DTN-80-2 |
DTN-100-2 |
DTN-150-2 |
DTN-200-2 | |
|
Rated capacity |
KVA |
25 |
40 |
80 |
100 |
150 |
200 |
80 |
100 |
150 |
200 |
|
Primary vol. |
V |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
|
Frequency |
HZ |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Max short circuit current |
KA |
15 |
18 |
28 |
33 |
38 |
43 |
28 |
33 |
38 |
43 |
|
Duty cycle |
% |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Max pressure |
N |
3000 |
3000 |
6000 |
6000 |
12000 |
12000 |
7900 |
7900 |
12000 |
12000 |
|
Operational stroke |
MM |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
|
Electrode
Stroke |
MM |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
|
Arm length and distance |
MM |
350*220 |
350*220 |
350*250 |
350*250 |
350*270 |
350*270 |
400*300 |
400*300 |
400*300 |
400*300 |
|
Cooling water flux |
L/min |
3 |
3 |
4 |
4 |
6 |
6 |
4 |
4 |
6 |
6 |
|
Max weld capacity(steel) |
MM |
2+2 |
3+3 |
4+4 |
5+5 |
6+6 |
6+6 |
4+4 |
5+5 |
6+6 |
6+6 |
