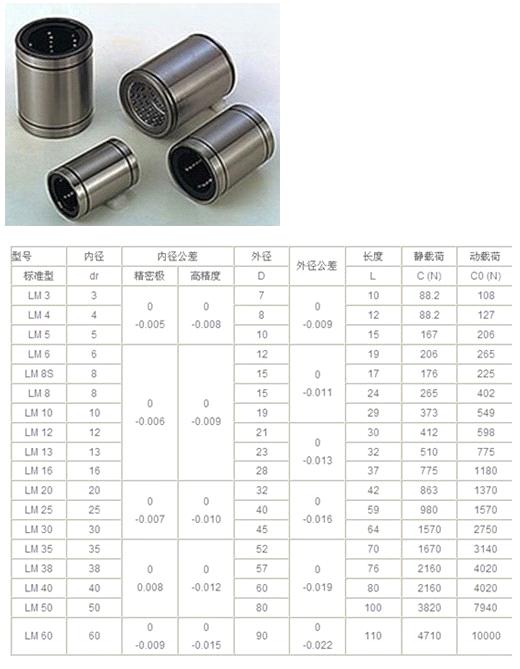

Linear Bearing (LM 5 5*10*15(d*D*L))

Specifications

linear bearings（LM,LME,LMB series,KH series） SUNTHAI bearing the characteristics of the three straight-line, uses, use the occasion SUNTHAI is a straight line bearing low-cost production of linear motion systems, for unlimited travel with the cylinder axis with the use of. As a result of carrying the ball with the shaft contact point was therefore the use of small load. Ball minimal friction resistance to rotation, which can be smooth precision movement. Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components. Grease lubrication: bearings straight into the internal anti-corrosion oil, if using oil lubrication, the first oil or organic solvents to remove anti-corrosion oil, then add dried grease. Recommend the use of sticky tags for N0.2 lithium soap grease. Lubricating oil: If oil lubrication, the corrosion is no need to remove the oil, according to temperature change can be selected ISO viscosity grade VG15-100 lubricating oil. Shaft for lubricating oil from the failed, or from the outside of the hole to the bearing pedestal oil. As the ring will scrape lubricating oil,lubricating oil does not apply non-porous bearings with seals. Installation Notes: Will be a straight line bearing load bearing should be used when the auxiliary work, to avoid a direct hit or face seals should be used evenly into bearings, with a buffer board, gently tapping with the optical axis penetration into linear bearings, shaft and bearings must be line of the centerline. If the axis is tilted insertion, ball may be off, or change caused by Cage, and damage to the linear bearings plus load should be evenly distributed throughout the bearing, in particular, bear the moment load should be used when two or more bearings. A straight line do not bear the rotating load bearing, or can lead to accidents. Suntai Bearing Linear model control, size, cross-references: 1. LM-GA, LME-GA, LMB-GA, LMK-GA, LMF-GA, LMT-GA KH-GA. GA on behalf of Steel Cage. 2. LM-UU, LME-UU, LMB-UU, LMK-UU, LMF-UU, LMT-UU KH-UU. UU Cage on behalf of nylon.
