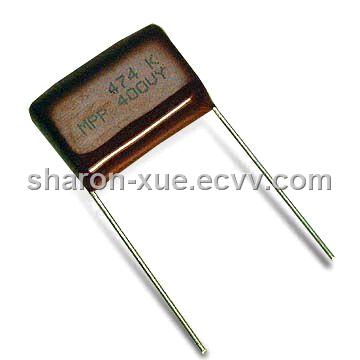

Metallized Polypropylene Film Capacitor

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Shenzhen in Taiwan

Specifications

Features:
- Low dissipation factor (DF)
- High-insulation resistance
- High-stability of capacitance and dissipation factor (DF) versus temperature and frequency
- Self-healing properties
Specifications:
- Operating temperature: -40 to 85 degree Celsius
- Capacitance range: 0.01uF to 3.3uF
- Capacitance tolerance: +/-2% (G), +/-5% (J), +/-10% (K)
- Rated voltage: 50, 100, 250, 400, 630VDC
- Dissipation factor: 0.1% maximum at 1kHz, 25 degree Celsius
- Insulation resistance:
  - 30,000M ohms (C =/< 0.33uF)
  - 10,000M ohms x uF/C (C greater than 0.33uF)
