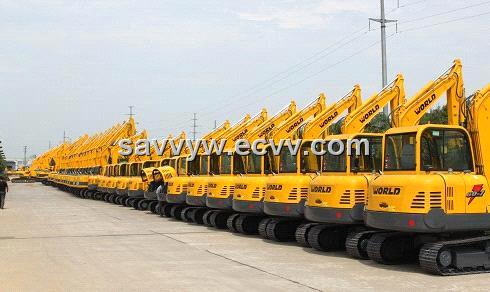

6 Ton Mini Excavator

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Jiangsu in China

Specifications

You can read the following contents to learn more about our mini excavator:

6 ton mini excavator, Yanmar (Japan) engine, Parker (Korea) valve, Rexroth (Japan) or Doosan pump, Jeil (Korea) travel motor and Jeil (Korea) swing motor. 0.21 cbm bucket capacity, self-made boom, arm, chassis, platform and bucket. With air conditioner.

Items		Model: W260
Engine System
Brand & Origin		Yanmar (Japan)
Model		4TNV94L-SFN
Rated Power (kw/rpm)		39/2200
Max. Torque (N.m)		197-214/1000±100rpm
Idle Speed (rpm)		1100
Engine Displacement (L)		3.054
Cylinder No.-Bore x Stroke (mm)		4-94x110
Engine Oil Capacity (L)		6.7-12
Fuel Tank Capacity (L)		122
Fuel Consumption Rate (g/kw.h)		235
Hydraulic System
Main Pump	Brand & Origin	Rexroth (Japan)
	Rated Pressure (MPa)	21.5
	Nominal Displacement (cm3/rev)	25x2+16.2+4.5
Multiple Unit Valve	Brand & Origin	Jeil (Korea)
	Rated Pressure (MPa)	21.5
Hydraulic Motor	Travel Motor Brand & Origin	Jeil (Korea)
	Traveling Speed (H/L km/h)	3.4/2
	Swing Motor Brand & Origin	Jeil (Korea)
	Swing Speed (r/min)	10
Hydraulic Cylinder	Boom Cylinder (mm)	110x65
	Arm Cylinder (mm)	85x55
	Bucket Cylinder (mm)	80x50
Hydraulic Oil Tank Capacity (L)		27-31
Working Specifications
Weight (kg)		5800
Bucket Capacity (m3)		0.21
Bucket Width (mm)		700
Bucket Digging Force (kN)		39.7
Arm Digging Force (kN)		32.6
Ground Pressure (KPa)		32.9
Grade ability		70%
Max. Digging Depth (mm)		2764
Max. Digging Height (mm)		5650
Max. Digging Radius (mm)		5948
Max. Discharging Height (mm)		4032
Min. Ground Clearance (mm)		364
Min. Swing Radius (mm)		2441/1645
Overall Dimensions (mm)		L:5900xW:1920xH:2600
