Specifications

Name:cbb65 a.c.

Item:cbb65 a.c.

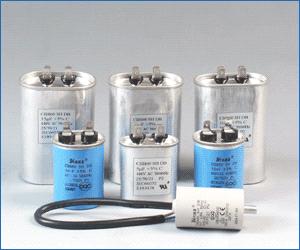

Description: Features and uses: Construction: non-inductive wound metallized polypropylene Coating: aluminium case filled with oil

Rated voltage: 180vac~~~450vac(250v/370v/400v/440v/450v)

Life expectancy: class b-10.000h /class c-3,000h

Rated frequency: 50/60hz

Rated capacitance: 2uf-100uf

Capacitance tol.: +-5%, +-10% (standard), other tolerances upon request

Climatic category: 40/85/21 (iec 60252)

Operating temp. Range: -40/+85c

Case: aluminium Test voltage terminal to terminal: 2.0 x un for 60s (un: rated voltage)

Test voltage terminal to case:>= 2000vac for 60s

Safety class:p1/p2

Max. Permissible voltage (rms):1.1 x un

Max. Permissible current (rms):1.3 x in

Max. Permissible reactive output: 1.35 x qn

Approvals: ul,vde,tuv,csa,cqc
