Home  >Products Catalog > Four-Post Lift (TLT455W)

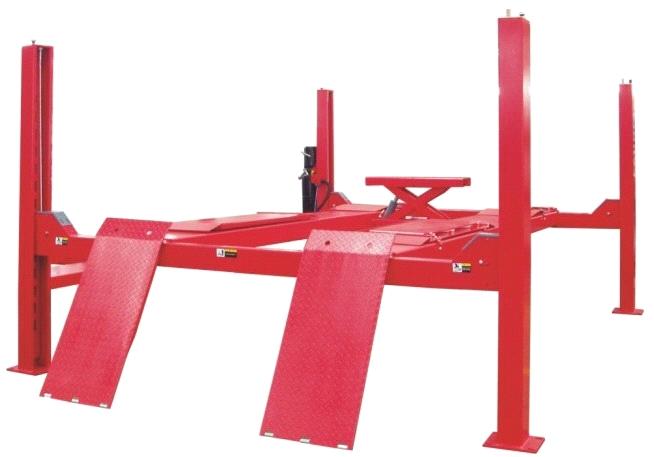

Four-Post Lift (TLT455W)

FOB Price: 2700.00 - 4200.00 USD/Set
Payment Terms: T/T(Bank Transfer), Western Union
In Stock
Inquiry Now
Follow ECVV to get products trends and industry news

Related products from verified members

Place of Origin: Guangdong in China

Specifications

-->

1. Driven by hydrauVlic cylinder in stable lifting and lowering. 2. Connected by four steel cables; forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles. 3. Equipped with rolling jack, turntable and sideslip, suitable for wheel alignment. 4. Adjustable distance between runways to accommodate different wheel track.
Fast:
* 6 steps for a complete alignment
* Permanent data transfer
* Live precise measurement readings
Time saving features:
* Fast Test
* Lower car function
* Customer defined car data base
* Adjustment in lifted position for toe, camber, caster
* Level gauge online control
Simple:
* Self centring clamps
* Cable free measurement, removes hassle for broken cables
* Ease of use programme
* Overview of measurement data in 2 views
Profitable:
* Probe rod with robust aluminium casting frame for long time use
* High quality Lenovo (IBM) Computer
* Fast and simple reduce work time for the alignment
* Unbeatable price / performance ratio

Target customer:
Independent Workshop or tire service shop with a high amount of wheel alignments. Precision and speed is asked for.
Fast wireless measurement is needed.
X - 531, the wheel alignment system for passenger cars and light trucks.
Wheel Alignment measurement is done with 8 CCD Cameras, 4 camber inclinometer, 4 KPI inclinometer and Bluetooth or 433 MHz radio data transfer between sensor heads and cabinet. The CCD camera technology allows precise wireless measurement.
The robust aluminium casting frame guarantees the precise measurement for long time. The batteries are capable for one day working without recharging.
The software, a complete bundle of programme and target data, is easy to use and contain nearly all kind of cars worldwide.

All this together makes this wheel aligner X-531, to one of the best.

-->

No. PartCode PartName
1  101010337  Compression T fitting, APB8-02
2  201021235  FL column
3  201020698  Locking latch plate assembly
4  103030114  Hexagon nut grade , GB/T41-2000, M20
5  103040138  Flat washer
6  103030143  Thin nut
7  103100080  L type fitting APL8-02
8  102160383  FR UNIT WAW2000-02(filter and regulator)
9  103201926  Manual change valve(two-position three-way)
10  103100214  L type air fitting APL6-02
11  103202114  Change valve bracket
12  104090094  Fitting for plastic corrugation hose(long thread)
13  103020133  Bolt M10*15 Zinc white-plating
14  103040122  Spring washer
15  201011165  Installation bracket of Power unit
16  103020134  Bolt M6*15 (Zinc white-plating)
17  103990096  China-made pump, 380V/50HZ/12L
18  103990078  Power unit, 220V/50HZ/1PH, 12L
19  103201512  Ajustable L fitting
20  201021233  Right column assembly
21  201021234  Rear column
22  201021126  Cross beam set
23  103020132  Flange bolt, GB/T57892000, M8*15
24  201021132  Cable sheave shaft assembly, short
25  202010073  Sheave spacer, nylon66
26  104990137  Sheave
27  201021800  air cylinder assembly
28  103100305  L type fitting APL6-M6
29  103060358  Pin, GB/T882-1986, B6*30
30  103201505  Linking rod
31  104990136  Slack cable roller, nylon66
32  202010075  slack cable device spacer
33  103201500  Locking latch
34  103020152  Countersunk bolt, M8*15(Zinc white-plating)
35  104990118  guide slipper, fortified nylon
36  103201497  Spring for slack cable device
37  103201499  Locking latch shaft
38  104130231  Thin rubber pad
39  103201482  Cover assembly
40  104130232  Thick rubber pad
41  103201486  Movable support plate assembly
42  103201488  Movable bracket
43  103050002  Elastic retaining ring
44  104990116  roller, nylon66
45  103201495  Roller pin
46  104990115  Sliding block(outer scissor), nylon66
47  103201490  Safety lock pin
48  104990114  Sliding block(inner scissor), nylon66
49  103201484  Safety lock bracket
50  103201485  Safety lock bracketII
51  103201481  Base frame assembly
52  103201489  Inner/outer scissor assembly
53  103201493  Cylinder support shaft
54  103201494  Cylinder location shaft
55  103260149  Secondary lift cylinder
56  103060354  Round pin
57  103990153  Manual air-hydrualic pump
58  103100285  APU8 fitting
59  102990093  APC8 air hose fitting
60  103030144  Locking nut
61  103030098  Locking nut, M8(zinc white-plating)
62  201011348  Stop plate
63  103020154  Flange face bolt, M10*30
64  103201518  Turn table assembly
65  201021127  Runway
66  104990138  Sheave spacing ring, oil nylon
67  201021148  Front ramp
68  103020073  Flange bolt, M10*20
69  201012241  Cable clamping plate
70  201012242  Cable clamping plate II
71  103201929  Steel cable I, L=10720
72  201021137  Long cable sheave shaft assembly (rear left runway)
73  103201930  Steel cable II, L=9235
74  103201931  Steel cable III, L=4905
75  103201932  Steel cable IV
76  103260177  Cylinder
77  103250168  Burst protection valve spool
78  103201508  Cylinder location pin
79  103201925  Runway rotatin pin
80  103201511  Non-oil shaft bushing(bearing)
81  103060360  Pin, 6*85
82  103200911  Ramp roller
83  201021146  Ramp assembly
84  201011826  lower limit plate of side slip plate
85  104080008  Rolling ball housing
86  104080007  Rolling ball , POM
87  201020694  Cover plate assembly of lateral slip palte
88  201020690  Insert pin assembly
89  103060355  Cotter pin, 3. 2*300
