Guangzhou Zhongyou Glass Machinery Factory
China Manufacturer with main products: Glass Machine, Glass Processing Material |
Home
>Products Catalog > Semi-Automatic Silk Screen Printing Glass & Frosting Glass&Acid Etched Glass Machine
Semi-Automatic Silk Screen Printing Glass & Frosting Glass&Acid Etched Glass Machine
| Supply Ability: | 10 Set(s) per Month |
|---|---|
| Shipping: | EXW |
| Payment Terms: | T/T, cash |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | total machine by protect film, three days after receiving the total money. |
Quick Details
- Plate Type: Screen Printer
- Automatic Grade: Semi-Automatic
- Usage: glass printer
- Brand Name: zhongyou
- Condition: New
- Plate Type: plate
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2 year
- Weight: 1.5ton
- Dimensions(L*W*H): 3750x2320x1100mm
- Gross Power: 1.5kw
- Voltage: 380v
- Color & Page: Two Colors
- Model Number: ZY-S183
- Dimension(L*W*H): 3750x2320x1100
- Power(W): 1.5kw
- Production Capacity: 200 sq meter per day
- Machine Type: Glass Printing Machine
- Condition: New
- glass thickness: 3-25mm
- Max glass size: 1830x2440mm
Specifications
Semi-automatic silk screen printing glass machine
Is a kind of multi-functional glass processing machine. Which can process:
1. color silk screen printed glass,
2. frosted glass,
3. acid deep-etched pattern glass,
4. mirror decorative glass,
5. hazy glass,
6. non-fingerprint glass,
7. and non-reflection glass in large quantities.
the glasses processed by this machine enjoy higher qualities than those operated by manual screen printing. Especially, in printing large sheets (1830mmx2440mm), as the machine can do printing smoothly and evenly.
the most outstanding characteristics of Silk Screen Printing Glass machine are low investment, high return and simple operation.
One set of this machine include frosting machine, PVC pool, silk screen machine.

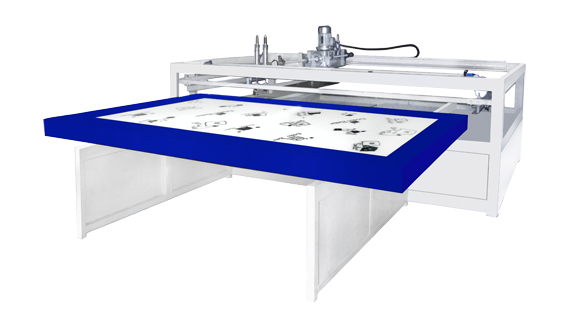

Semi-aUtomatic silk screen glass machine ZY-S183
No. |
Name |
Quantity |
Price (RMB) |
the accessories and technical data | |||
No. |
Name |
Quantity | |||||
1 |
Silk screen glass machine + Frosting machine |
1set |
100000 |
1 |
SIlk printing machine |
1set | |
2 |
Printing bedplate |
1set | |||||
3 |
Printing scraper |
2hundle | |||||
4 |

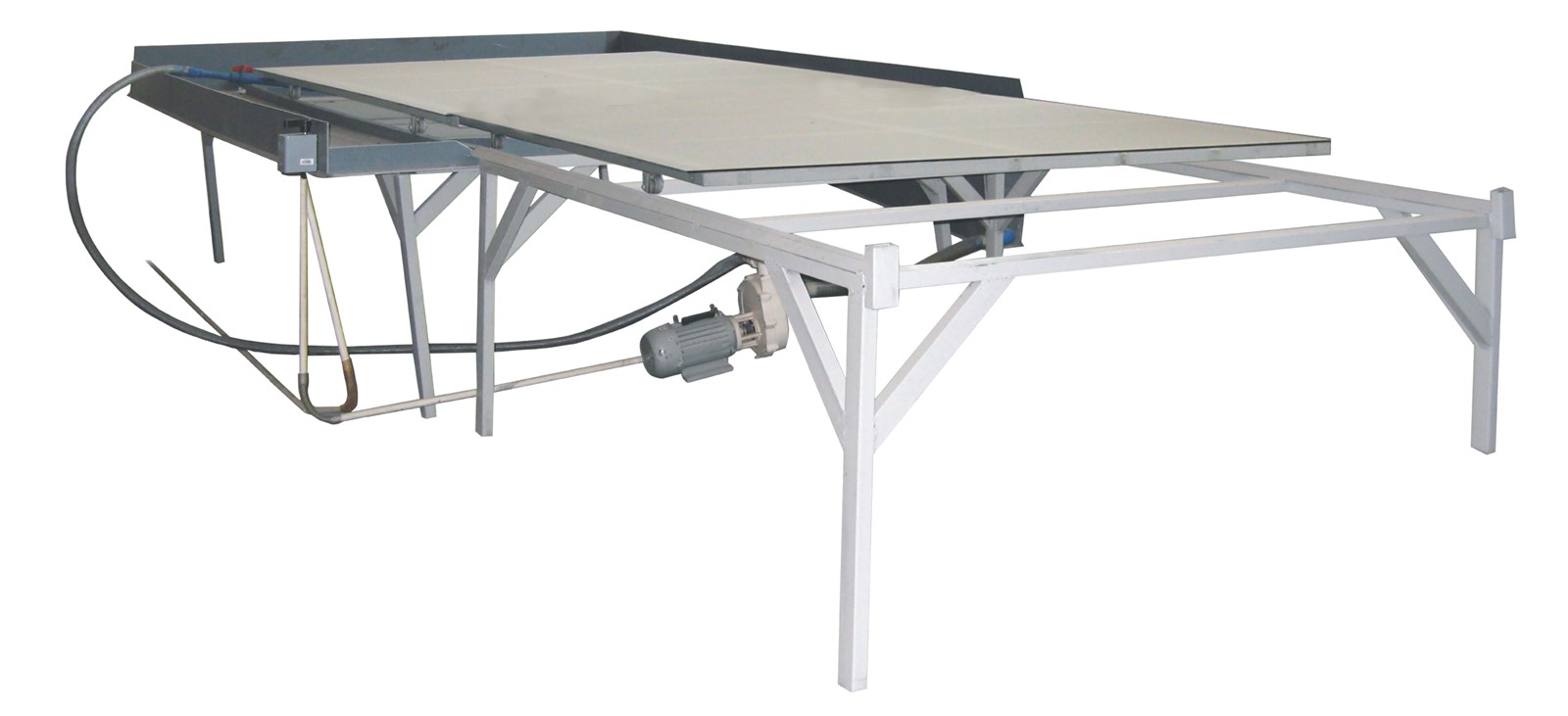

Frosting glass machine |
1set | |||||
5 |
Net frame with picture(free) |
2 set | |||||
6 |
Anti-acid pump |
1set | |||||
7 |
Frosting scraper |
1hundle | |||||
8 |
BEd track |
2set | |||||
9 |
MAking net screen machine |
1 set | |||||
10 |
EXposure table |
1 set | |||||
11 |
THe sevenTh atlas for Zhongyou |
5books | |||||
12 |
THe sevenTh disc of Zhongyou |
1set | |||||
Amount: |
100000 RMB (EXW,Excluding taxes) |
| |||||
Technic date for 1830mm
Equipment Size:3750*2320*1100 Processing Size:1830x2440
Glass Thickness:3-25mm Power:1.5kw
Equipment Weight:1.5t Applicable Power:220v
Printing Speeding:50-60m2/h
Comparison between art glass and manual art glass:
Comparison Items |
by Machine |
by Hand | |
Frosting Glass |
Processing Cost |
RMB 1-2/m2 |
RMB 3.5/m2 |
Printing Capacity |
1,000 m2/2 persons |
300 m2/2 persons | |
Acid Etched Glass |
Processing Cost |
RMB 4.5/m2 |
RMB6-7/m2 |
Printing Capacity |
700m2/4persons |
100m2/8persons | |
Intensity of Labor |
Low |
High | |
