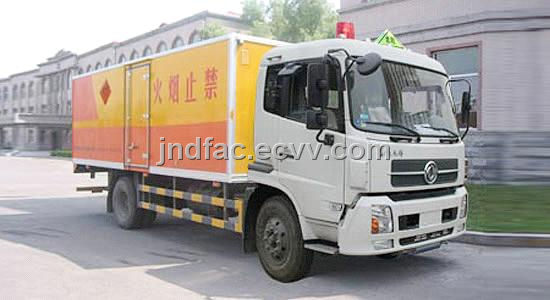

Dongfeng Tianjin 4*2 Blasting Equipment Transporter(15tons)
| FOB Price: | 20000.00 - 100000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 25 weekdays |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | waxed,in bulk/container/roro ship |
Specifications
| Technical specification | |||
| Producat Name | DONGFENG TIANJIN 4*2 Blasting Equipment Transporter | Overall dimension | 8580×2495×3350(mm) |
| Chassis Model | DFL1160BX | Cargo body Dimension | 6100×2365×1950(mm) |
| total mass | 16000(Kg) | Approach/Departure angle | 17/13(°) |
| Rated mass | 9400(Kg) | front/rear suspension | 1430/2450(mm) |
| curb mass | 6405(Kg) | Max speed | 89(km/h) |
| Engine | Engine manufacturer | Displacement (ml) | Power(kw) |
|
ISDe180 30 ISDe185 30 ISDe210 30 B190 33 EQH180-30 EQH180-33 YC6J200-33 |
DONGFENG CUMMINS GUANGXI YUCHAI |
4500 6700 6700 5900 4752 4752 6494 |
132 136 155 140 132 132 147 |
| Emission standard | GB3847-2005,GB17691-2005 Euro Ⅲ | ||
| Axle No. | 2 | front tread | 1880/1800,1860(mm) |
| Wheelbase | 5000,4700 mm | rear tread | 1800,1860(mm) |
| Tyre No. | 6 | tyre size | 9.00-20,9.00R20,10.00-20,10.00R20 |
| fuel type | Diesel | Spring(pcs) | 7/9+6,8/10+8 |
| axle load | 6000/10000 | cab passenger | 3 |
| Note |
The body roof is enclosed and can not open. max load capacity:15 tons The transport medium: trinitrophenol, trinitro-toluene, pentaerythrite tertranitrate |
||
| Special function |
Our brands: DONGFENG, JAC, JMC,OLLIN,FORLAND,AUMAN,ISUZU,JIEFANG etc. Structure: the framework of tank body is double-deck metal ,the external body is cold rolling steel plate,inner body is covered by aluminum alloy ,the interlayer is filled in heat-proof and flame retardant materials . the tank door is of side by side combination ,the inner body is dealed with destaticization to convince the safety of the vehicle.the fixed sliding tabs installed in front and side of the inner body can avoid the movement of the goods with the help of fasten belts. |
||
