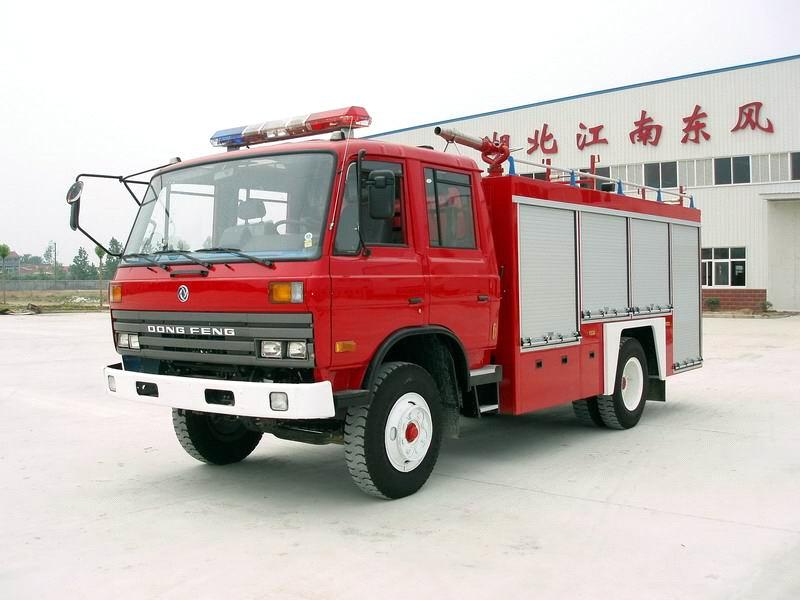

Dongfeng Fire / Foam Truck (5000L)

FOB Price:	30000.00 - 50000.00 USD/Set
Supply Ability:	500 Set/Sets per Month
Shipping:	20 workdays
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Product Details

Place of Origin:	Hubei in China
Packaging Details:	waxed

Specifications

--------engine

Model EQB160-20

Type: Water cooler strait line six cylinder four stroke supercharge diesel engine

Power (kW) : 118

Displacement (ml): 5880 　

Fuel type : diesel 　

------ chassis

Capacity :4.5ton

Outline dimensions (mm):7550*2370*3200

Wheelbase (mm):3950

Cab: forward control cab double row seats ,could allow six people. 　

------ Specialized function

Foam truck:

water tanker capacity (L):4000 ,foam capacity (L):1000

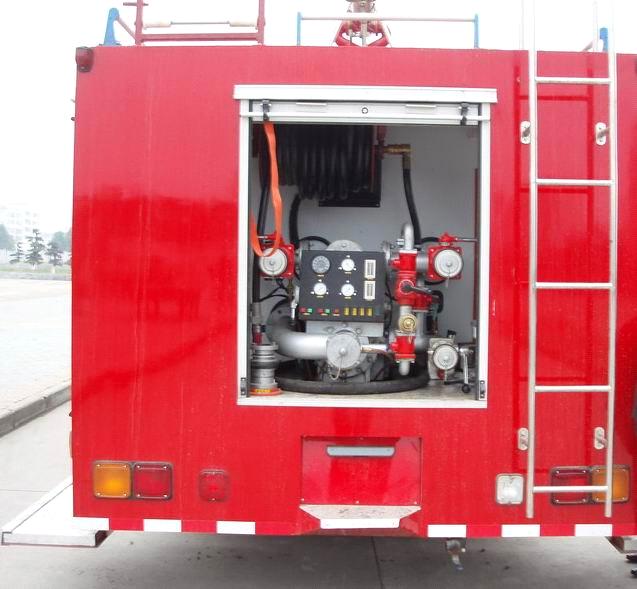

Middle and low pressure pump:

Model:CB20.10/15.30 low pressure flow:30L/s/1.0MPa middle pressure flow:15L/S/2.0MPa

Monitor: :PP24

Flow:48L/s/1.0MPa water throw range:≥45m foam throw range:≥40m

water truck :

water tanker capacity (L):4500

Fire pump :normal pressure pump

Model:BS30 pump,flow:30L/s, pressure:1.0MPa

Water engine model:SP30 water throw range:≥55m

DONGFENG EQ145 fire truck refited from dongfeng EQ1108G6DJ16 chassis,The vehicle is novel in design,The vision is open, whole performance is good.The pump adopts and fetches strength way sandwich, reach advance, and put out the fire in step;It is flexible to operate, get in touch with and command it freely.

Feel free to contact with us for more information and we will reply you soonest!
