shenzhen poray communication co.,ltd
China Manufacturer with main products: 3G wireless router, 3G USB modem, wireless USB adapter |

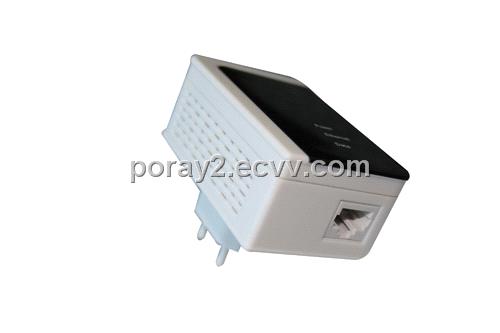

85Mbps Powerline Ethernet Adapter (PS-P85)
| Shipping: | 2-3 days |
|---|---|
| Payment Terms: | T/T(Bank Transfer), Western Union, PayPal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Guangdong in China |
|---|
Specifications
This 85M Wallmount can provide the transmission of broadband data service via power line,
which are suitable for use in a wide range of both residential (in-home) and commercial (offices,
apartments, hotels, warehouses) network applications in which existing power lines can be utilized.
There is never any need to install new wires. These adapters enable the effortless creation of a
high-speed network that supports video, voice and data.
u Wallmount type and power voltage range of 85 to 265 VAC 50/60Hz
u HomePlug 1.0.1 Turbo compliant
u Support QAM 256/64/16/8, QPSK, BPSK, and ROBO modulation schemes.
u Up to 85 Mbps data rate on the power line.
u 56-bit DES Link Encryption with key management for secure power line communications.
u Windowed OFDM with noise mitigation based on patented line synchronization techniques
improves data integrity in noisy conditions.
u Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
u Integrated Quality of Service (QoS) Enhancements
u Supports IGMP managed multicast sessions
Application
u Standard Definition (SD) video distribution
u Higher data rate broadband sharing for power line LAN
u Shared broadband internet access
u TV over IP (IPTV) and Voice over Internet Protocol (VoIP)
Parameter Specification
|
System SPEC
|
||
|
Chipset
|
Intellon INT5500
|
|
|
Serial Flash
|
8Mbits
|
|
|
Firmware
|
Intellon 5500 with FW1.5/FW1.6/FW1.8
|
|
|
Feature and Technology SPEC
|
||
|
Protocol
|
HomePlug 1.01 Turbo /IEEE802.3/3x/3u
|
|
|
System Support
|
Windows 98SE,2000, ME, XP 32/64bit, Vista 32/64bit, Win7 32/64
|
|
|
PLC rate
|
85Mbps
|
|
|
Data Rate- TCP/UDP
|
30Mbps TCP; 40Mbps UDP
|
|
|
Modulation Band
|
4-21MHZ
|
|
|
Modulation Schemes
|
Supports 256/64/16/8-QAM,QPSK,BPSK and ROBO
|
|
|
Encryption
|
56-bit DES
|
|
|
Qos
|
Integrated Quality of Service(QOS) Enhancements
|
|
|
Work Mode
|
Priority based CSMA/CA
|
|
|
Multicast support
|
Supports IGMP V2
|
|
|
IPv6
|
Support
|
|
|
LEDs
|
Power:
Ethernet:Ethernet Link and Activity
Data: PLC Link and Activity
|
|
|
Power Socket
|
Support British, Euro, Japan, US and China power connector
|
|
|
Ethernet Interface
|
1x RJ45 for 10/100M Ethernet(Auto MDI/MDI-X)
|
|
|
Consumption
|
2.5W
|
|
|
Environment Requirement
|
||
|
Operating Temperature
|
0º to 45º C
|
|
|
Storage Temperature
|
-20º to 70º C
|
|
|
Operating Humidity
|
10% to 90% Non-condensing
|
|
|
Storage Humidity
|
5% to 90% Non-Condensing
|
|
|
Input Rating
|
100-240 VAC, 50/60HZ
|
|
|
EMC and Safety
|
||
|
Regulatory Compliance
|
FCC part 15 Class B CE
|
|
|
Safety Regulations
|
UL
|
|
|
Green Standard
|
RoHS
|
|
|
Physical Dimension
|
||
|
Physical Characteristics
|
L×W×H: 82mm*52mm*32mm
|
|
