Dongguan Kelida Weighing Apparatus Co., Ltd.| Sourcing Services
Dongguan Kelida Weighing Apparatus Co., Ltd.

China Manufacturer with main products: Scale, Truck Scale, Weighbridge, Platform Scale, Floor Scale, Livestock Scale, Feeder Machine Scale, Electronic Truck Scale

Home  >Products Catalog > Truck Scale > 10-150 Ton Electronic Truck Scale

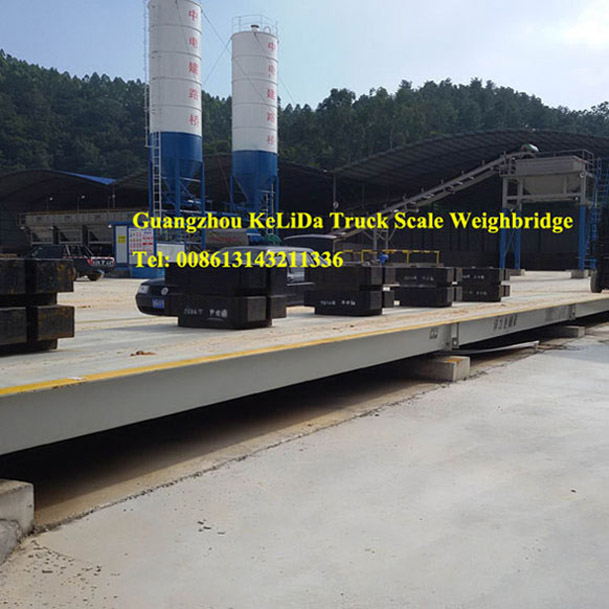

10-150 Ton Electronic Truck Scale

FOB Price: 4,000.00 - 13,000.00 USD/Set
Supply Ability: 100 Set(s) per Month
Shipping: within 15 days after receipt of 30% TT deposit
Payment Terms: L/C, T/T, Other, attainable
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: modules of scale platform are fastened by bolts; load cell, indacator and other accessories are plac

Quick Details

  • Accuracy: 5Kg, 10Kg, 20Kg up to truck scale capacity
  • Rated Load: 10Ton-150Ton
  • Display Type: LED
  • Type: Truck Scale
  • Brand Name: KeLiDa
  • Power Supply: 110V~220V AC, 50Hz~60Hz; DC 12V

Specifications



10150 Ton Electronic Truck Scale
Functions of Electronic Truck Scale

A/D conversion with readability 1/30000
  1. Use inner code to replace weight observing and analysis tolerance
  2. Software to strength anti-vibration ability
  3. Zero-tracking, Zero range setup (auto/manual)
  4. Setup digital filter intensity, range and stable time
  5. Counting function with unit data save protection in case of power off
  6. Alarm for low battery and auto power off when low battery
  7. KG/LB  switch
  8. A/D module resolution: 20000 yard
  9. Temp range: - 30~ + 70℃
  10. Zero balance: -0. 1%~ + 0. 1% F. S
  11. Refresh rate for date: 50Hz
  12. Protection Class: IP68
  13. Communication: baud rate (9600BPS)
  14. Rated input Volt: 9~12V DC
  15. Combined error: -0. 02% ~ +0. 02%F. S
  16. Max input Volt: 20V DC
  17. Creep error (30min): -0. 02% ~ +0. 02%FS
  18. Safety overload: 150%F. S
  19. Temp effect sensitivity: -0. 02% ~ +0. 02%F. S/ 10 ℃
  20. Max signal transmission distance: 1200m

Remarks
since the limitation of standard container to scale body, scale platform are designed as small modules (or separate sections). the dimensions of such modules are: 1. 5*5m (or 6m, 7m), 1. 6*5m (or6m, 7m) and 1. 7*5m (or 6m, 7m).

the separate design not only makes it more convenient to install, uninstall and maintain, but also make the connected platform more rigid since more U-shaped beams are added to such connected platform  than the number of a whole platform. and that is why domestic customers who take scale quality into account first prefer to the export type of scale as well as foreign customers.
