Product Details

Place of Origin:	Guangdong in China
Packaging Details:	CTN

Specifications

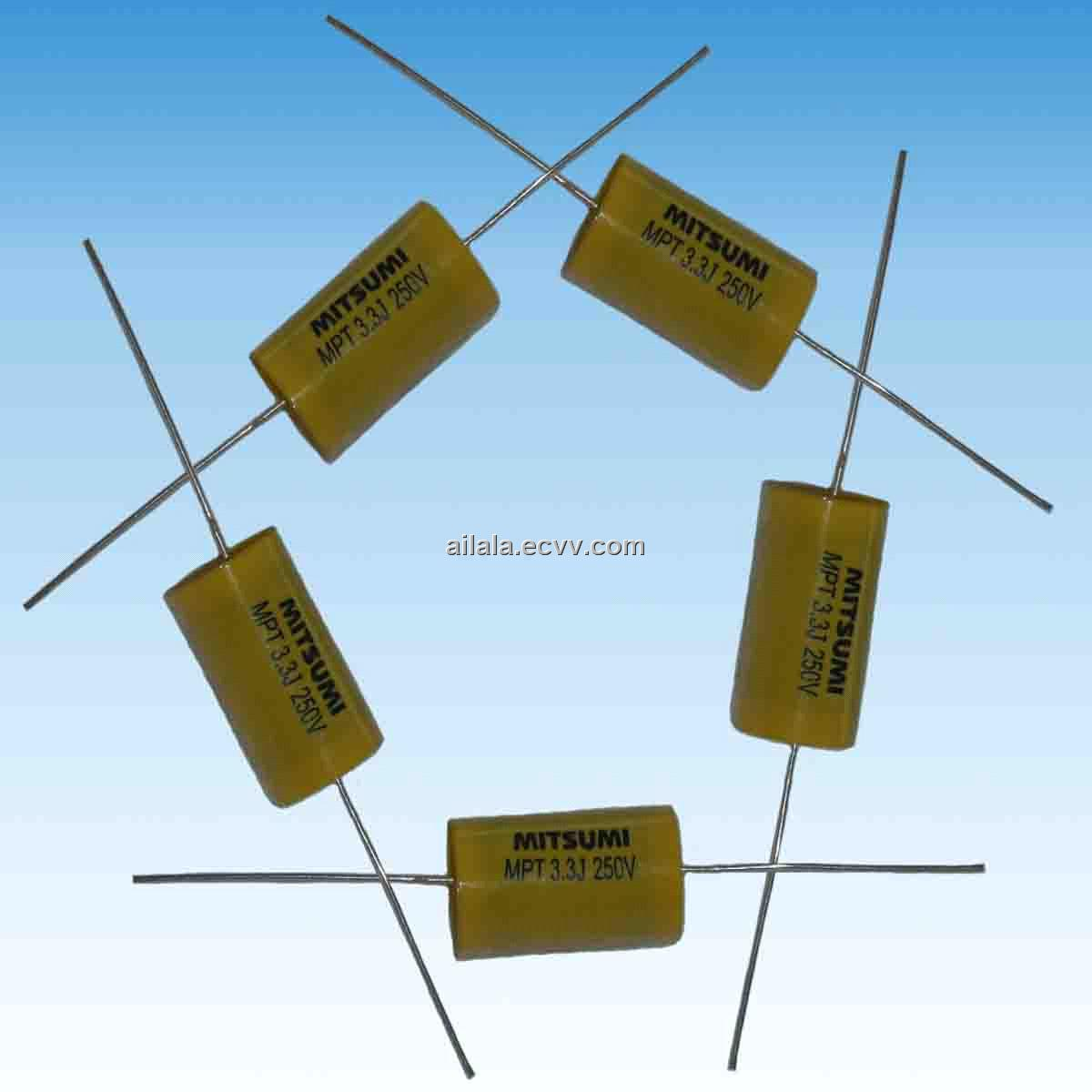

Metallized Polypropylene Film Capacitor Axial Type CBB20

Are non-inductively wound with metallized polypropylene film as the dielectric/electrode and copper-clad steel leads or UL wires, wrapped with PBT tape and sealed with epoxy resin

Features:

1. Non-inductive construction, Down-leads axial style

2. Very low loss at high frequency, suitable for high current

3. High insulation resistance, long life due to self-healing effect

4. Widely used in high frequency, DC, AC, and pulse circuits

Specifications:

Reference standard	GB10191-1998 IEC 60384-16
Climatic category	40/85/21
Rated voltage	100/160V 250V 400V 630V 1000V 1200V
Capacitance range	0. 0033-6. 8μ F
Capacitance tolerance	± 5%(J) ± 10%(K) ± 20%(M)
Voltage proof	1. 6U_R(5s)
Dissipation factor	≤ 0. 1% (20℃, 1KHZ)
Insulation resistance	≥ 25000MΩ (C_R≤ 0. 33μ F) ≥ 7500S (C_R > 0. 33μ F)	(20℃, 1min)
