Quanzhou Rixin Flow-Meter and Instrument Co., Ltd.
China Manufacturer with main products: digital flow meter, gas flow meter, water meter, flow meter, steam flow meter, bitumen flow meter, liquid flow meter and so on |
Gas Flow Meter
| FOB Price: | 500.00 - 5555.00 USD/Set |
|---|---|
| Supply Ability: | 8,000 Set/Sets per Year |
| Shipping: | 20~30 days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Fujian in China |
|---|---|
| Packaging Details: | wood box |
Specifications

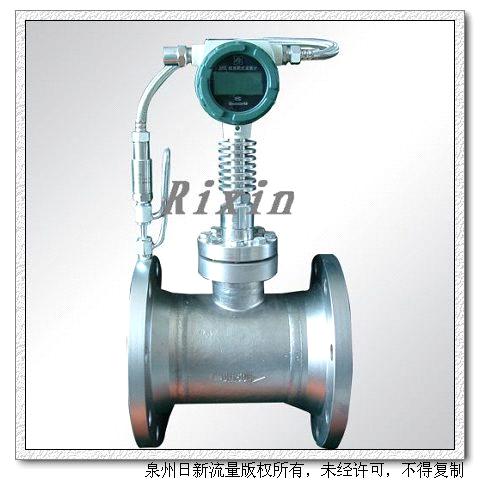

gas flow meter-digital meter
SBL digita type Flow Meter developed by us company, has the national patent high
technology. It can be widely used in liquid, gas, steam and other special media measurement.this type
flow meter accoding to customer’s need,it with some prominent features,such as small deviation,high
accuracy, easy to operate and install, can be cleared and adjustment factor at any time, it is a new type
of flow measurement instrumentation
Flow meter for all gas0-4.0Mpa:
|
DN mm |
Flow range
Nm3/h |
pressure
Mpa |
Temp
℃ |
Accuracy
% |
No removable part, high accuracy; Fast measure, good repeatability: 0.03-0.06 % Small pressure loss, only 1/2△P of orifice; Accuracy: ±0.5%; ± 1.0%; ± 1.5%; Measure range: 1: 10; 1: 20; 1: 30 Working condition: dirty, sticky and high density have not effect to accuracy Temp: -196℃～+700℃; Working pressure: 0-55Mpa; Exact measure: 1 m3/h and larger(flow range in left can be smaller) Good interface and magnetic reactance adopt hang weight method test Easy installation and maintenance Material: carbon steel, s.s.304, s.s.316, s.s.316 Power supply: 3.6V Li battery, 24VDC, 3.6V Li battery+24VDC Output form: 4-20mA, RS485/RS232, pulse, 0-10V, HART, remote reading, satellite positioning; Protection rank: IP65; IP67; Explosion-prevent symbol: ExiallCT4; ExdllCT4; Standard: Q/QZRX001-2007; |
|
6
|
1-30-600
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
8
|
1-30-650
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
10
|
2-60-700
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
12
|
2-60-750
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
15
|
2-60-820
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
20
|
2-60-1230
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
25
|
3-90-2050
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
32
|
5-150-3280
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
40
|
8-240-5330
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
50
|
13-390-8200
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
65
|
20-600-14350
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
80
|
35-105-20500
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
100
|
50-150-32800
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
125
|
100-300-32800
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
150
|
160-480-53300
|
0-55
|
-196~700
|
±0.5±1.0±1.5
|
|
|
Diameter: 6-4000mm(selectable)
Lathe-dog: 6-50 mm Thread: 6-50mm Flange: 15-300 mm Clamp: 15-600 mm Insert: 80-4000 mm Inline removable: 80-4000 mm(uninstall without stop the flow)
Each of Rixin’s flow meter is made according to your special need.
|
|||||
Media: Natural gas, gas, air, methane, butane, liquefied petroleum gas, hydrogen, sodium hydride, gas, helium, oxygen, nitrogen, argon gas, coke oven gas, flue gas, etc.
