Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

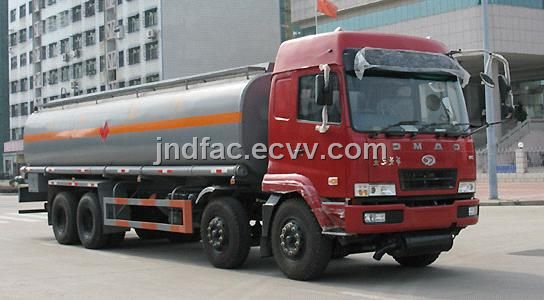

CAMC 8*4 Fuel Tank Truck (24000L)
| FOB Price: | 20,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | within 30 days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | according to customer's demand |
Specifications
| Technique parameter | |||
| Name | CAMC 8*4 oil tank truck | L×W×H mm | 11980×2500×3650(mm) |
| Chassis Model | HN1310P29D6M3J | Cargo body Dimension(mm) | ××(mm) |
| total mass | 31000(Kg) | Approach/Departure angle | 22/18(°) |
| Rated mass | 16000(Kg) | front/rear suspension | 1370/2805(mm) |
| curb mass | 14805(Kg) | Max. speed | 85(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
|
WD615.329 YC6L260-30 CA6DL1-29E3 ISLe290 30 ISLe31030 SC8DK280Q3 WP10.300N WD615.92E WD615.93E WD615.93 WP10.270N SC9DF290Q3 L290 30 WP10.270E32 WP10.310E32 SC9DK270Q3B1 SC9DK290Q3B1 SC9DK310Q3B1 WP10.310 F2CE0681D*B053 |
Hangzhou Automotive Engine Factory
Guangxi Yuchai Machinery Co., Ltd. FAW Automobile Co., Ltd. Wuxi Diesel Engine Branch
Dongfeng Cummins Engine Co., Ltd.
Shanghai Diesel Engine Co., Ltd.
Weichai Power Co., Ltd.
Sino Truck Group Co., Ltd. Shanghai Diesel Engine Co., Ltd. SAIC Fiat Hongyan Powertrain Co., Ltd. |
9726 8400 7700 8900 8900 8270 9726 9726 9726 9726 9726 8820 8900 9726 9726 8820 8820 8820 9726 8709 |
213 191 213 213 228 206 221 196 213 213 199 213 213 199 228 199 213 228 228 213 |
| Emission standards | GB3847-2005, GB17691-2005(EuroⅢ) | ||
| Axle | 4 | front tread | 2065/2065/1860/1860(mm) |
| wheelbase | 1850+4605+1350,1940+4515+1350 | rear tread | 1860/1860(mm) |
| tyre | 12 | tyre size | 11.00-20,12.00-20,11.00R20,12.00R20 |
| fuel type | diesel | spring | 9/9/12 |
| axle load | 6500/6500/18000(double axles) | cab passenger | 3 |
| Note |
Transport medium: gas, desnity:0.7t/m³;
Tank capacity: 24m³,
Tank dimension (length×long axle ×short axle)(mm): 9000×2400×1600.
|
||
|
Special
performance |
★Our company modifies oil tank truck on the mature chassis of China. The customers may provide chassis themselves and we modify it with our component.
★Tank material: carbon steel, stainless steel, steel lined, fiberglass, plastic tanks (polyethylene)
★Tank shape: square round, oval, round
★Oil pump: self-priming pump, gear pump, chemical pump, stainless steel pump ★Fuel gauge: single count, double count, tax fuel dispenser.
★Oil tank truck can be designed into chemical tank truck .
★Oil tank truck can be equipped with computer oil machine. ★Different tons of truck can meet customer’s need. ★The tank has many anti-wave baffles and adopts high pressure gas leakage detection, so that the truck has features of high intensity, stable center of gravity and safety. |
||
|
|
|
||
|
Contact with us to get more information and pictures, and we will serve you best!
|
|||
