Jiangsu Sunshine Industrial Co., Ltd.
China Manufacturer with main products: Welding Machine, Welding Equipment, TIG Welding, Welding Torch |

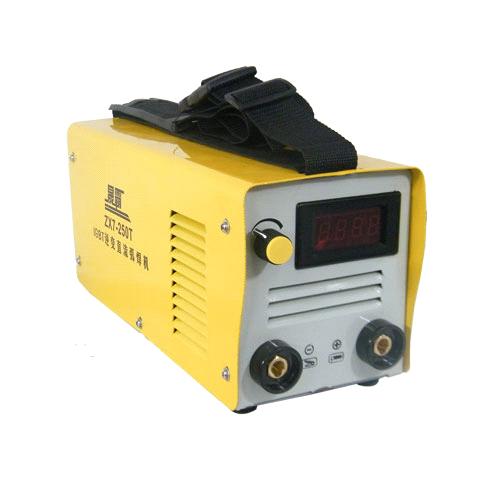

Welding Machine (MMA Series) MMA-250
| FOB Price: | 108.00 - 150.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Month |
| Shipping: | 15days |
| Payment Terms: | L/C, T/T |
Related products from verified members
![manual welder machine / manual pvc windows machine -Ms Awen [008615063343341]](http://ic10.ecvv.com/upload/Product/20123/200x200/China_manual_welder_machine_manual_pvc_windows_machine_Ms_Awen_0086150633433412012381601377.jpg)
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | 1 carton/set |
Specifications
1.Digital IGBT inverter welding machine, CPU for self-protection like self-diagnosis and self-control, "pre-safeguard " and milliseconds response time to ensure a steady reliable working environment.
2.National defense level fine accuracy of Current output , suitable for all kinds of basic welding electrode (J506, J507, etc.) and stainless steel, cast iron, copper, aluminum and other electrodes, the additional carbon arc gouging, erection steel welding capabilities and ease of manual TIG welding.
3.Ultra-Portable - 1 / 3 size of ordinary inverter welding machine.
4.Easiness of arc starting, stable welding arc, deep weld pool, forming a good shape, highly constant precisely adjustable continuous output current from 0 to maximum current.
5.Energy efficient (efficiency up to 90%, power factor 0.9).
6.Single control knob, built-in menu to select welding mode easily and set the value to meet the need of accurate control from high-end users.
7.Modular combination for rapid removal ,installation, easy maintenance and repair
|
MMA Series IGBT Inverter DC Manual Welder
|
MMA-160
|
MMA-200
|
MMA-250
|
|
Input power voltage(V)/Frequency(HZ)
|
single phase 220V, 50HZ/60HZ
|
||
|
Rated Current(A)
|
160
|
200
|
250
|
|
Rated Input Capacity(Kva)
|
7
|
9
|
11
|
|
Open Circuit Voltage(V)
|
61±5
|
61±5
|
61±5
|
|
Electrodes
|
J421,J422,J506,J507,stainless steel,cast iron,copper,aluminum ETC.
|
||
|
Electorde Diameter(MM)
|
1.6-2.5
|
1.6-3.2
|
1.6-3.2
|
|
Current Adjusting Range(A)
|
20-160
|
20-200
|
20-250
|
|
Input Voltage(V)
|
180-240
|
180-240
|
180-240
|
|
Output Cable Length(M)
|
≤50
|
≤50
|
≤50
|
|
Power Factor
|
0.9
|
0.9
|
0.9
|
|
Efficiency
|
90%
|
90%
|
90%
|
|
Input Phase Current When Open Circuit
|
0.3A
|
||
|
Self-Protection
|
Have default phase,over-voltage,low-voltage,over-heat self protect functions.
|
||
|
Overall Dimension(MM)
|
315*137*155
|
315*137*155
|
315*137*155
|
|
Weight(KG)
|
4.5
|
4.5
|
4.5
|
|
Insulation Class
|
F
|
F
|
F
|
|
Protection Grade
|
IP21
|
IP21
|
IP21
|
|
Display
|
LED Digital Display
|
LED Digital Display
|
LED Digital Display
|
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
