Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

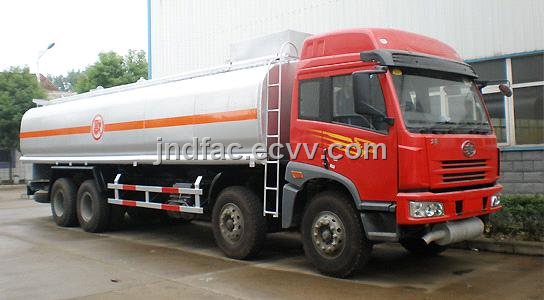

Jiefang 8*4 Fuel Tank Truck - 25500L
| FOB Price: | 20,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | within 30 days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | according to customer's demand |
Specifications
| Technique parameter | |||
| Name | Jiefang 8*4 oil tank truck | L×W×H mm | 11950×2490×3350(mm) |
| Chassis Model | CA1313P7K1L11T4E | Cargo body Dimension(mm) | ××(mm) |
| total mass | 31000(Kg) | Approach/Departure angle | 22/11(°) |
| Rated mass | 17000(Kg) | front/rear suspension | 1375/2825(mm) |
| curb mass | 13805(Kg) | Max. speed | 85(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
|
BF6M1013-26E3 BF6M1013-28E3 CA6DL1-26E3 CA6DL1-28E3 CA6DL1-26E3F CA6DL1-28E3F |
China FAW Group Corporation |
7146 7146 7700 7700 7700 7700 |
203 216 203 216 195 209 |
| Emission standards | GB3847-2005,GB17691-2005EuroⅢ | ||
| Axle | 4 | front tread | 1928/1928,2020/2020/1847/1847,1830/1830(mm) |
| wheelbase | 1900+4500+1350,2000+4700+1350 | rear tread | 1847/1847,1830/1830(mm) |
| tyre | 12 | tyre size | 10.00-20,10.00R20,11.00-20,11.00R20 |
| fuel type | diesel | spring | 12/12/10,9/9/12 |
| axle load | 6500/6500/18000(double axles) | cab passenger | 3 |
| Note |
Tank capacity:25.5m³.
Tank dimension (length×long axle ×short axle)mm9100×2400×1540.
Transport medium: gas, desnity:0.7t/m³;
|
||
|
Special
performance |
★Our company modifies oil tank truck on the mature chassis of China. The customers may provide chassis themselves and we modify it with our component.
★Tank material: carbon steel, stainless steel, steel lined, fiberglass, plastic tanks (polyethylene)
★Tank shape: square round, oval, round
★Oil pump: self-priming pump, gear pump, chemical pump, stainless steel pump ★Fuel gauge: single count, double count, tax fuel dispenser.
★Oil tank truck can be designed into chemical tank truck .
★Oil tank truck can be equipped with computer oil machine. ★Different tons of truck can meet customer’s need. ★The tank has many anti-wave baffles and adopts high pressure gas leakage detection, so that the truck has features of high intensity, stable center of gravity and safety. |
||
|
|
|
||
