Shenzhen Yuan Mechanical Electronic Co., Ltd.
China Manufacturer with main products: Turnstile, Parking System, E-Ticketing System, Time and Attendance, Tripod Turnstile, Flap Barrier, Swing Barrier, Full Height Turnstile |

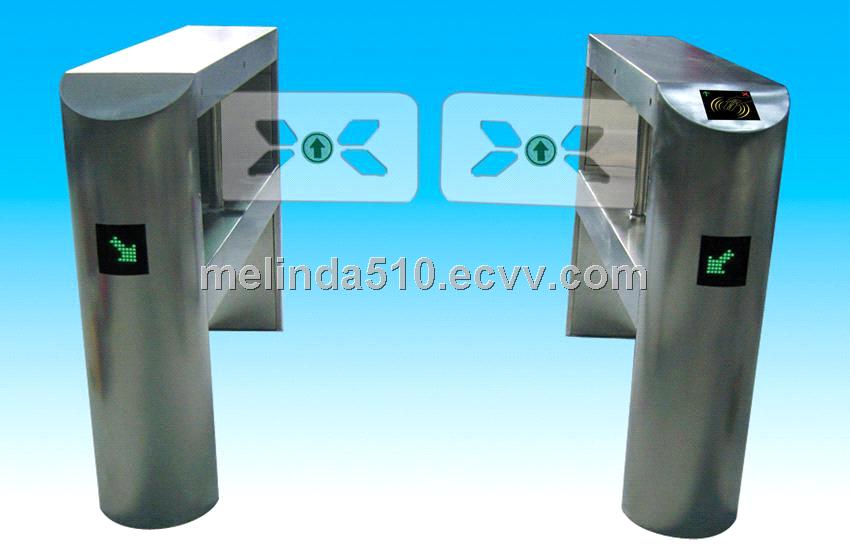

Automatic 850mm Slim Swing Barrier YAT6609N
| FOB Price: | 2,600.00 - 2,700.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Week |
| Shipping: | 5-14 days after receipt of payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Export wooden case, inner packed in carton and foam |
Quick Details
- Brand Name: Yuan
- Model Number: YAT6609N
Specifications
Intelligent automatic swing barrier gate swing barrier is intelligent access management device which is produced by our company after many yearsresearch and development. And it is a high-tech product aimed at access intelligentized management. The product, integrating with mechanism, electron, microprocessor and various identification technology, by configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator and well-extended LED counting display, is able to achieve acess intelligentized control and management.
The product, compatible with such card reader devices as IC card, ID card, bar code, fingerprint is able to effectively manage the entrance and exit and provide people with civilized, orderly transit manner. It is one kind of the speed gates with powerful functions used for access control system, which is a deal device to fullfil intelligentized access management. Because it has well solved the problem that the traditional tripot turnstile had, especially the low transit speed problem caused by people with luggage and the disable, as well as the problem of nipping bicycles. It could be wildly used in the place where intelligentized management is needed such as station, port, subway, factory, mansion, intelligent community, hotel, club,marketplace, enterprise and institution.
Specification:
1. Functional characteristcs of standard product:
1)With function of self-examine and alarm, it is convenient for maintenance and use.
2)being able to program operation status by the small keyboard in the main board
3)Preventing pedestrians from being nipped and from hurt
4)Light and sound alarm funtion including the illegal in and follower
5)Arms are automatically locked untill opening signal is received.
6)swing arms synchronization (adjustable)
7)Automatically reset function: It will automatically lock if the pedestrian hasnt pass through the channel in the pre-set time after the opening. The passing time is adjustable
6)swing arms synchronization (adjustable)
7)Automatically reset function: It will automatically lock if the pedestrian hasnt pass through the channel in the pre-set time after the opening. The passing time is adjustable
8)Automatically open the gate when power off and automatically close when power on
9)Several card readers are attachable, and relay singals can be received.
10)One direction or bi-direction control are optional
9)Several card readers are attachable, and relay singals can be received.
10)One direction or bi-direction control are optional
11)It can be directly controlled and managed by remote control.
12)Automatically time-prolong reset, default time is 10sec
12)Automatically time-prolong reset, default time is 10sec
13)The swing barrier automatically opens after power off and automatically closes when power on, which accords with fire-fighting.
2. Extendable function:
Counting
Light and sound prompt alarm function
Infared reset function
Length of framework and material of arm are optional.
3. Main structure and configuration:
1 standard caseworks
1 standard caseworks
1 stretchable arms (colours are optional)
1 main control boards
1 transformaers
1 electricmotors
1 sets of core and transmission parts
4. Standard technical parameters
Framework material: State standard 304 grade stainless steel
Framework material: State standard 304 grade stainless steel
Framework size: 1440*280*1000(mm) (standard)
The length of swing barrier: 600-900mm
Weight: 60Kg
Rotating angle: 180degree
Rotating direction: Single or bi-direction
Working voltage: AC220 ±10% V/50 ±10% HZ
Driving eletricmotor: DC electrocmotor with bush 200W/24v
Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with wildth of more than 100ms, driving current: ≥10mA
Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with wildth of more than 100ms, driving current: ≥10mA
Normal life-span: 3million times
Communication interface: Rs485 standard Distance less than 1200metres
LED indicator: 1 card reader window: 2
Transit speed: 40 persons/minopen often,25-30 persons/min(close often)
Time for opening or closeing: 2-3 seconds
Starting time after power is on: 3 secconds
LED indicator: 1 card reader window: 2
Transit speed: 40 persons/minopen often,25-30 persons/min(close often)
Time for opening or closeing: 2-3 seconds
Starting time after power is on: 3 secconds
Automatic reset time after fault: 10seconds
Working environment: Indoor, outdoor( with a tent over)
Temperature: -10 50 Relative humidity: ≤90%
Temperature: -10 50 Relative humidity: ≤90%
