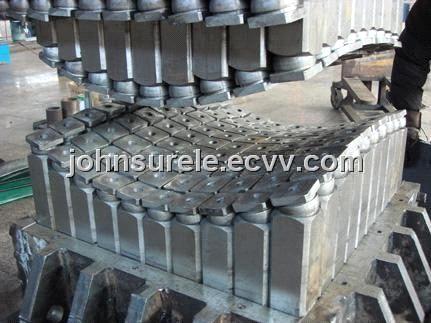

3-D Numerical Control Plate Bending Machine

FOB Price:	100.00 - 10000.00 USD/Set
Shipping:	30 days after receiving the payment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Place of Origin:	Shandong in China
Packaging Details:	as customer require

Specifications

3-D numerical control plate bending machine Technical Specification
Parameter		Unit	Technical Specification
Shape of bending plate			U-shaped and Veliform
Minimum transverse bend radius		mm	R2200
Dimension of plate	thickness	mm	8～35(The optimal thickness: 14～35)
	Max.Width	mm	2400(According to the demand of customers)
	Max.Length	mm	12000(According to the demand of customers)
The yield strength(σs)		N/mm²	235～345
Total press of upper die		KN	60000
The hydraulic press of each indenter in upper die		KN	280
The specification of indenter		mm	140×140
The quantity of indenters in upper die		unit	17×13＝221
The quantity of indenters in lower die		unit	18×14＝252
The Max.Range of adjustable height of indenter in upper die		mm	600
The Max.Range of adjustable height of indenter in lower die		mm	400
Data interface			connect with TRIBON/HDSHM system
Precision of shaping		mm	Accord with Chinese shipbuilding quality standard GB/T4000-2005
The precision of laser detection			0.5%
Working pressure of hydraulic system		MPa	25
Power electric motor		KW	85
The dimension of outline of figure(lengthwidthheight)		mm	8640×4940×7320

Place of Origin:	Shandong in China
Model No:	SURELE6000
Brand Name:	Surele

Technique: International Patent

Thickness of the plate: 35mm
Shape pf bended plate: U-shape and Veliform
Minium transerverse radius: R2200 mm
The yield strength of the plate: 235-345
Total pressure of the upper die: 60000KN
The hydraulic press of each indenter in upper die: 280KN
The specification of indentor 140X140mm
The quantity of indentors in upper die: 17X13=221
The quantity of indentors in low die: 18X14=252
Data interface: connect with TRIBON/HDSHM system
