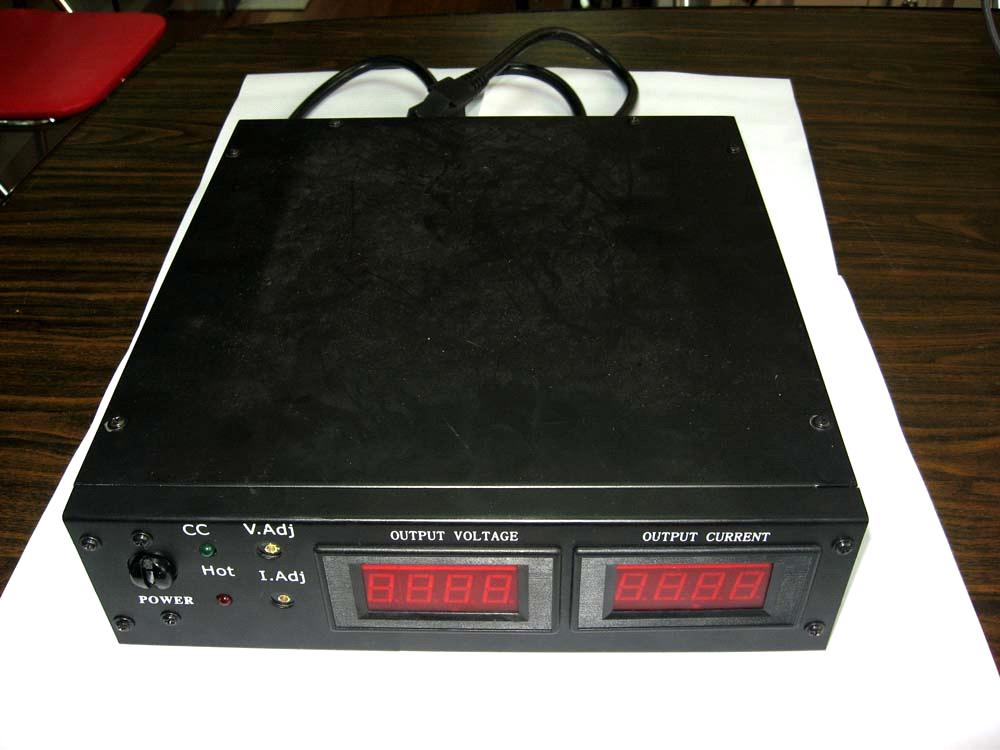

MST-60 Battery Charger and Stability Voltage Equipment

Thank you for choosing MST- 60.
MST-60 Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications and prevents equipment damage from voltage fluctuations and transient surge. for Order, Click MST-60 Automatic Voltage Regulator.
Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.
MST-60 is birthed from our customers’ needs for safe vehicle ECU programming for BMW, BENZ and other brands of vehicles. By adopting industrial standard, frequency transformer switching power supply and intelligent power charge technologies, Not only it can be used for vehicle ECU programming, but also can be used for many other types of UPS (Uninterruptible Power Supply System) equipments. It regulates the output voltage and current with over-charge and over-heat protection and current adjustment.  It can prolong the lifespan of the battery drastically and enables battery charge to the full automatically if it’s used for battery charge.
Features:
1. Regulates output voltage and current.
2. Protects from over-voltage, over-current and over-temperature with voltage and current number reading indicators on the equipment and over-temperature indicator.
3. Enables automatic and safe vehicle ECU programming.
4. Prolongs battery lifespan and Enables battery being charged to the full if it’s used for battery charge.
5. Can be used unattended and fully automatically.
 Applications:
1. Can be used for BENZ, BMW and other premium vehicle ECU programming and other purposes.
2. Electromotor bike
3. Electrics screen
4. SPC exchange
5. Broadcast transmitter
6. Communication work station
7. UPS Equipments (Uninterruptible Power Supply Systems)
8. Any Battery and Power supply system
 Main Parameters:
1. Input voltage: AC220V±15%, or AC110V±15%
2. Output voltage adjustable range: 1-14V
3. Output current adjustable range: 1-60A
 Kit Includes:
1. Cable 1
2. cable 2
3. MST-60 regulator
Users Manul:
Step1:Preset the output voltage first,please do not take the load at the output of the power regulator when preset the required output voltage.
To be safest,please adjust the voltage and the current to the minimum value.
Step2:First switch off the power,connect the load equipment,then switch on the power.
 If the pre-adjusted output voltage regulation value is below 20% (10V), please first check the output voltage stability whether output voltage exceed the allowable range.The checking method is:before connect the load devicet, repeat the “step1”several times to check the stability. If the output voltage exceed the alllowable range,it is easy to damage the load divice when connect to it.
Step3: when the electricity is running, you can adjust the front panel of the two potentiometers to change the output value and output constant current regulator value.
Internal cooling fan is with temperature control, it will auto turn on only the machine with high temperature, it will stall when the high temperature drop. Make sure there is nothing to block air circulation in the right and lest sides of the cooling fan.
Immediately Trouble Shooting: If it does not work correctly please switch off the power and cut off the input power cable, check carefully whether the input power cable connection is correct, reliable. If meet difficult problems,please should not open the cabinet if you are not the expertise. Because the machine has high voltage, It is strictly prohibited to open the cabinet r without permission,please contact us for maintenance.
