Hangzhou North Equipment Co., Ltd.
China Manufacturer with main products: Welding Positioner, Positioner, Turning Roll, Welding Turn Table, Welding Rotator, Welding Chuck, Welding Manipulator |
Home
>Products Catalog > Welding Positioners > 600kkg BY-600H Weldiing Positioner with Pneumatic Torch Holder and Tail Stock

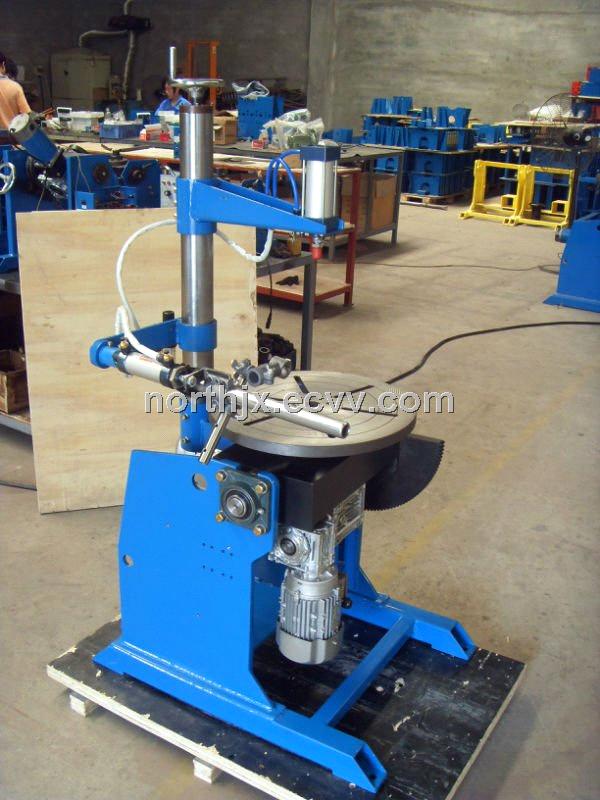

600kkg BY-600H Weldiing Positioner with Pneumatic Torch Holder and Tail Stock
| FOB Price: | 2,146.00 - 2,415.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Month |
| Shipping: | within 3 days after payment |
| Payment Terms: | L/C, T/T, Western Union, Other, Paypal & Alipay |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden box, pass export standard |
Quick Details
- Brand Name: Hznorth
- Model Number: BY-600H
- Voltage: 110V / 220V / 240V
- Rated Capacity: 600 kg
- Dimensions: 1.02*0.71*0.86 m (packing)
- Weight: 196 kg (Net)
- Usage: Welding Position
- Certification: CE
- After-sales Service Provided: Overseas service center available
- Color: Blue, Yellow, Red
- Table Rotate Speed: 0.2-1.8 RPM
Specifications
BY-600H type positioner can conduct automatic circular seam welding or cutting by equipped with pneumatic welding gun feeding mechanism and pneumatic core clamper; With screw installed on upright post, the distance between pneumatic core clamper and operation platform can be adjusted by turning handle wheel. The welding gun feeding mechanism is adjustable at any angles
Technical Data of BY-600 Welding Positioner
|
Input Power
|
AC220V 50Hz
|
|
Loading Capacity 0° / 90°
|
600Kg / 300Kg
|
|
Working table diameter
|
650mm
|
|
Working table height
|
675mm
|
|
Working table speed
|
0.2~1.8 r.p.m.
|
|
Table rotation angle
|
0~90°
|
|
Working table turning mode
|
Electric
|
|
Working table turning speed
|
2.5r.p.m.
|
|
External dimensions
|
650×800×675mm
|
|
Weight
|
186kg
|
