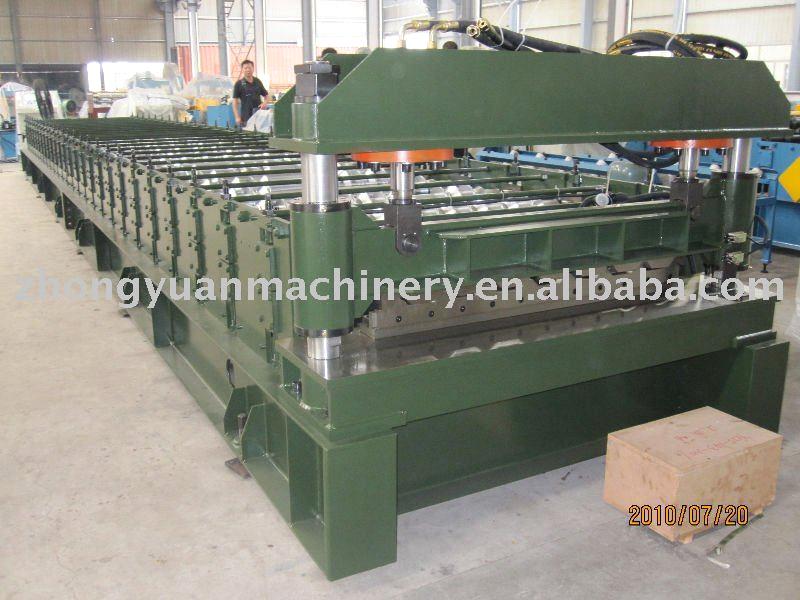

High Quality Roll Forming Machine

Specifications

roll forming machine:
1) used for making roof /wall sheets
2)  with CE certificate
machine components:
roll forming machine consists of decoiler,coil sheet guiding device,mail rool forming system, cutting device, hydraulic station,and PLC control system and support table
main technical parameter:
1) suitable material: color steel sheet or galvanised steel sheet
2)thickness of raw material: 0.4 - 0.7mm
3) forming speed: 15 - 20 meters per minute
4) porwer requirement:  main motor power: 5.5KW
                                            hydraulic station power: 5.5KW
5) decoiler loading capacity: Max. capacity 5000kgs( can be increased to 10 ton )
6) control system: mitsubishi PLC and converter
7) machines weight : 9 ton
8) machines size: 12 x 1.5 x 1.4 cubic meters
material of main equipment:
1) rollers material: high grade No.45 forged steel, with digital-controled procession, plated with hard chrome
2) active shaft material: high grade No.45 carbon steel, which can improve the                 integrated mechanical feature of shaft. the diameter of shaft: 72mm
3) electric elements: PLC and converter are imported form mitubishi of japan
other elements form famous suppliers in china
4) cutter blade: Cr.12 mould steel with quenched treatment
