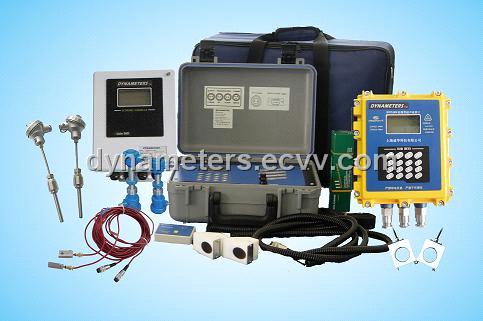

Series DMHF Transit-Time Ultrasonic Heat Flow Meter

Shipping:	By express or By Air
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Rotameter

Price:100.00-1000.00 USD/Set

Min. Order:1 Set
V-Cone Flowmeter

Price:

Min. Order:
Wall Mounted Open Channel Flowmeter

Price:

Min. Order:
Ultrasonic Flowmeter

Price:300.00-1,000.00 USD/Pack

Min. Order:1 Pack
Gas Flow Meter

Price:500.00-5555.00 USD/Set

Min. Order:1 Set
Flowmeter (OGM)

Price:

Min. Order:10 Pieces
Multipoint Network Data Logger flow meter

Price:100.00-400.00 USD/Set

Min. Order:1 Set
LPG Flow Meter

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Carton as per export standard

Specifications

The Series DMHF adopt the MultiPulse^TM Technology, Digital Signal Processing Technology and Error Correction Technology, which are the state-of-the-art non-invasive flow measurement technology, with a measuring system of very high accuracy, versatility, low cost of installation and ownership. The meter can calculate automatically caloric content of water under 0℃~200℃ temperatures, and can obtain instantaneous caloric value and totalized caloric value. The pipe range should be DN15-2500 (For series Insertion, the allowed pipe range is DN65-2500. For series Flanged, the allowed pipe range is DN20-2500.).

Features

1. For transmitter, users can select fixed types or Portable types.
2. For transducer, non-invasive Clamp-on and Insertion type are available.

3. For temperature sensor, utilize Pt1000 with 0.1%, clamp-on and the Insertion type are available.
4. Internally configured batch controller makes batch control convenient and accurate.
5. No moving parts, no pressure drop, no need of maintenance.
6. Easy and economical installation, hot-tapped installation.
7. Daily, monthly and yearly totalized flow: totalized flow for the last 64 days and months as well as for the last

5 years can be reviewed.

8. Optional SD card Data logger output, can memory Total heat flow, Heat flow rate, etc.

Applications

◆ Measuring heat flow
◆ Sewage and drainage water with small particle quantity.
◆ Oil, including crude oil, lubricating oil, diesel oil, fuel oil, etc.
◆ Beverage and food processors
◆ HVAC hot and cool water, water /glycol solutions.
◆ Water and waste treatment
◆ Power plants, heat energy boiler feed water.
◆ Energy consumption supervision and water conservation management
◆ Metallurgy and miming applications (e.g., acid recovery)
◆ Marine operation and maintenance
◆ Pulp and paper industries
◆ Pipeline leak detection, inspection, tracking and collection
◆ Energy measurement and balancing
