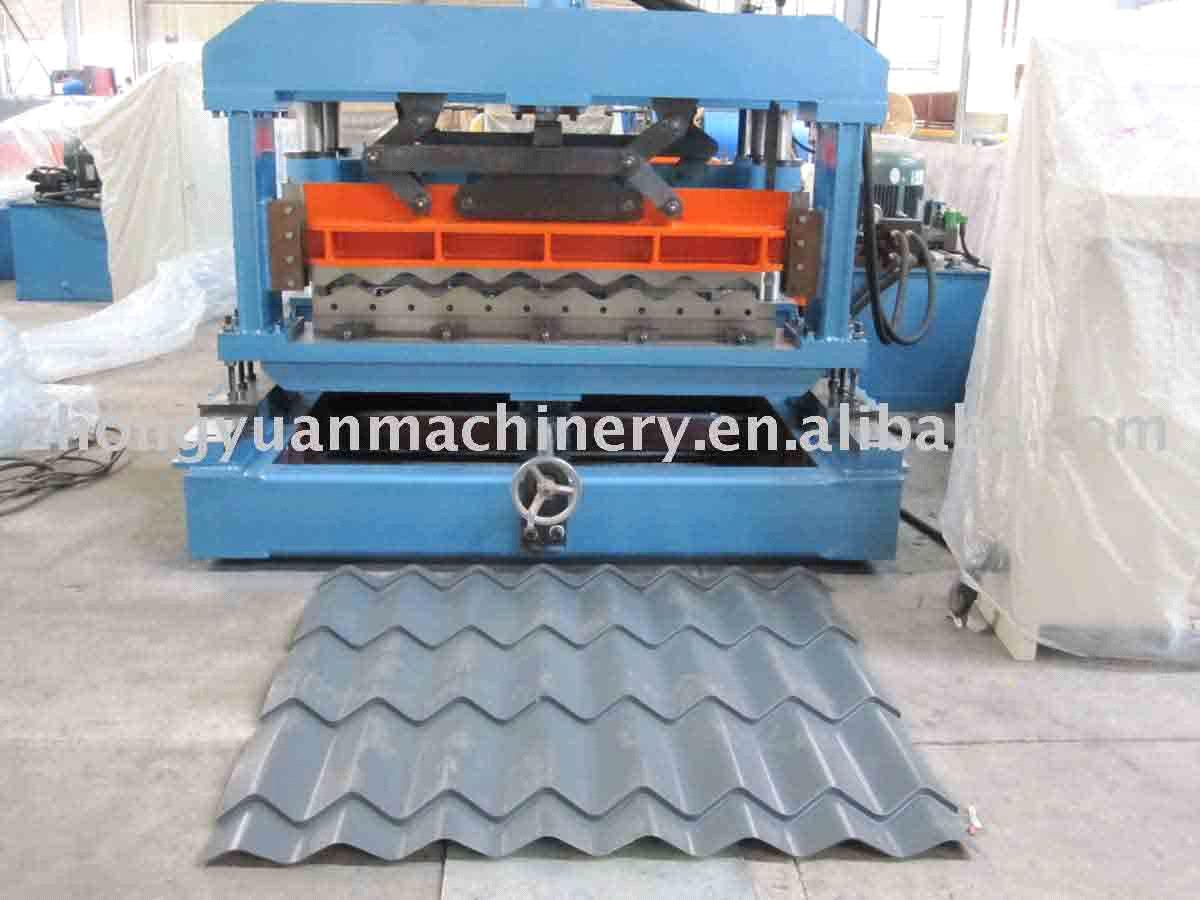

Roof Tile Forming Machine

Specifications

Roof Tile Forming Machine:

product feature:
the colored steel tiles produced by this machine look beautiful and noble.they are widely used in the roof of garden, factory, hotel and exhibition center
machine components:
the machine consists with decoiler, coil sheet guiding, main forming system, pressing device, cutting device, support table, hydraulic station and PLC control system

main technical parameters:
suitable material: color steel sheet
thickness: 0.5 - 0.6mm
working speed: about 15-20 meters per minute. or 4-5 meters per minute. for option
step distance: adjustable according to requirement ( but normally exceed 25mm)
power requirement: main motor: 4kw
                                     hydraulic station motor: 5.5kw
uncoiler loading capacity: 5000kgs (can be increased to 10t)
controlling system: mitsubishi PLC & converter
the weight of machine: about 10t
the size of machine: about 10 x 1.7 x 1.4  cubic meters

material of main equipments:
roller material: high grade No.45 forged steel, with  digital-control procession, pained with hard chrome
active shaft:  high grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of shaft. shaft diameter is 72mm
electric elements: PLC & converter imported from Japan mitsubishi
cutter blade: Cr12 mould steel with quenching treatment
