Product Details

Place of Origin:	Shenzhen in China

Specifications

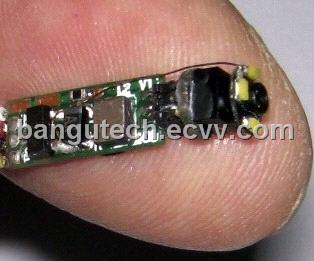

OV6920 Sensor'world's Smallest' Camera Module Diameter Only 4mm with Leds

This is smallest camera of world, just 4mm Diameter.It based on the OV6920 1/18 CMOS, offers the color-full and sharp image. The lens is selectable. It can used for flexible video endoscope, Medical Video-scope, inspection camera, Industrial Video-scope, oral camera, fish-camera,under-water camera, Robot camera and so on. It has advantage of small size, low power consumption; it is a good choice for your application.

Specification:

Image Sensor	1/18 OV6920 CMOS
Horizontal Resolution	240TVL
Sensing Area	820μ m×625μm
Signal System	NTSC
Effective Pixels	320×240
Scanning frequency	H:15.7343KHz V:60Hz
Electronic Shutter	1/60S – 5.7μS
S/N Ratio	≥42dB
Gray Rating	10th rank
Gamma value	0.45
Low electricity level	0.06 Vp-p
Minimum Illumination	2.0 Lux / F2.0(0 Lux When LED is on)
Video Output	1.0Vp-p 75Ω
Standard layout lens	55°/92°
LED Lamps	1mm-80mm(4 lamps, can be set as you want)
dimensions of camera board	4mm×16mm
Power Consumption	DC 3.5V-- 5V camera module:20mA;
Power Consumption	LED:20mA
Operation Temperature	-20℃~45℃ RH95% Max
