Bangu Technology Development Company Limited
China Manufacturer with main products: Industrial Camera Module, Endoscope, CMOS Camera, OV6920 Camera Module, TFTCD Display Module, Fish Camera, Medical Camera Module |
| Place of Origin: | Shenzhen in China |
|---|
Specifications

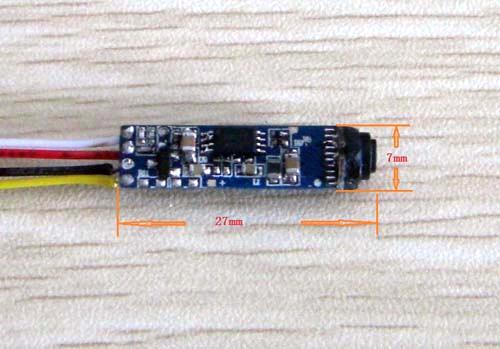

This camera is based on the1/5 CMOS sensor,offers the color-full and sharp image. It can used for flexible video endoscope.Medical Video-scope, inspection camera,Industrial Video-scope, oral camera, fish-camera,under-water camera, Robot camera and so on. It has advantage of small size, low power consumption,but high defination; it is a good choice for your application.
Specification:
|
Dimensions
|
Φ7mm*26mm(L)
|
|
Sensor
|
1/5" VGA Color CMOS sensor
|
|
Signal system
|
NTSC/ PAL
|
|
Effective Pixels
|
720(H)x480(V)(N)/720(H)x576(V)(P)
|
|
Maximum Frame Rate
|
60(@27MHz in NTSC)/50(@27MHz in PAL)
|
|
Gamma value
|
52 dB
|
|
DOF
|
30-60mm
|
|
Standard layout lens
|
FOV=60° F2.8/2.42mm with IR cut
|
|
Video Output
|
Composite Video signal:1.0Vp.p 75ohms
|
|
connector
|
(1)LED wire, (2)power wire,(3)ground wire,(4)signal wire
|
|
Power
|
DC3.3V / 110mA
|
|
Weight
|
50g
|
|
temperature
|
(0℃ to +50℃ )
|
