Regeneration Device for Transformer Oil

FOB Price: 9,000.00 - 56,990.00 USD/Set
Supply Ability: 100 Set/Sets per Month
Shipping: in 20 daysafter payment
Payment Terms: L/C, T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Chongqing in China
Packaging Details: in wooden case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: ISO9001
  • Weight: 550-2200KG
  • Dimension(L*W*H): according to flow rate
  • Power(W): 35-254KW
  • Voltage: 380V/3P/50Hz(or as needed)
  • Usage: Transformer Oil
  • Model Number: VFD-R
  • Brand Name: Sino-NSH
  • Working Pressure: less than 0.2Mpa
  • Flow: 1800-18000L/H
  • Condition: New
  • Impurity Size: less than 5um
  • Cleanness: NAS 6 grade
  • Water Content: less than 4PPM
  • Gas Content: less than 0.1%
  • Vacuum Range: -0.092 to -0.099Mpa
  • Temperature Range: 45 - 65 degrees
  • Breakdown Voltage: more than 75Kv
  • Dielectric Loss: less than 0.005Tg
  • Interfacial Tension: more than 40mn/m
  • Heating Power: 30-240KW

Specifications

Brief Introduction About Sino-NSH

Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc. We provide oil purifier machine for many famous brands like SIEMENSABB etc.()

      Regeneration Device for Transformer Oil

The necessity for transformer oil dehydration and degassing is know for a long time. Sino-NSH Transformer oil purification plant removes moisture, gasses and solid particles from transformer oils. NSH transformer oil purification plantsare built in different sizes with variable flow and highly efficient degassing chamber. Plants are of stationary or mobile design and can work on offline or online transformers.



Regeneration Device for Transformer Oil

I.Application
NSH VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.



II.Description
NSH VFD series utilizes coacervation technology,coalescing technology,separating technology and refined purification technology.Comparing to Model VF series,it add ROOTS Vacuum system,second stage of separating system to improve the effect of purification. To remove free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.



III.Features
1.Effective and efficient Dehydration(Degassing) System.
2.High precision Filtering System.
3.Powerful double stages Vacuum System.
4.Electrical apparatus Controlling System.
5.High quality components.
6.Diverse design in the structures and functions.



IV.Edges of VFD
1.High efficiency and effectiveness.
2.Enhance the value of breakdown voltage greatly.
3.Easy handling and maintenance.
4.Online work.
5.Lower maintenance and replacement expenses.
6.Small size, light weight, low noise
7.Various sizes and configurations (shield) available.



V.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.



VI.Relative Series:
VFD series: Insulation Oil Purifier Series
TF series: Turbine Oil Purifier Series
LV series: Lubrication Oil Purifier Series
GER series: Used Engine Oil Regeneration System

VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It  also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

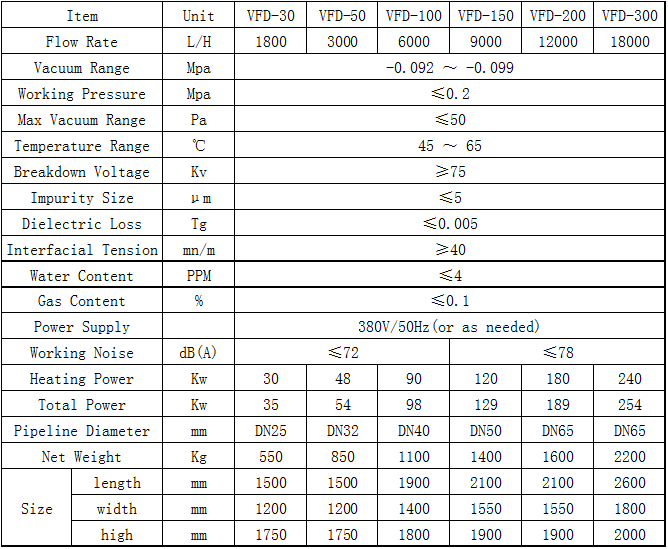

Technical specification
Regeneration Device for Transformer Oil
