Ningbo Yuhui Communication Equipment Co., Ltd.
China Manufacturer with main products: Fiber Optic Series, Network Cabinet, Distribution Cabinet Box, Modules and Accessories, Network Tools, Patch Panel and Cable Manager,... |

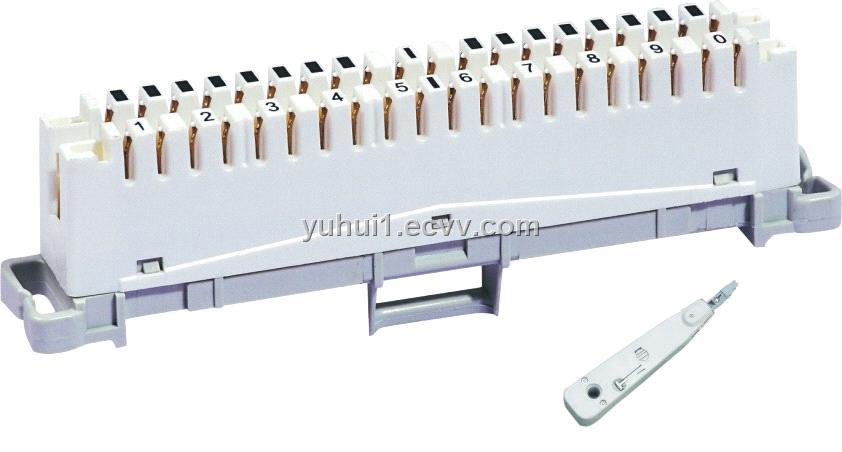

Disconnection Module YH-6036 1005-00
| Shipping: | 7 days |
|---|---|
| Payment Terms: | T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|
Specifications
The disconnection/connection module is mounted on the main distribution frame or in cable cross connection cabinet and cable distribution box and used for connection of exchange lines and jumper wires.
Environment:
In dry or damp rooms without condensation, temperature range:
For Storage: -40…+90ºC
-40…+194ºF
During Operation: -20+80ºC
-4…+176ºF
Life Cirdes:
0.35…0.65mm conductor: >200 times
0.8mm conductor: >50times
Material: ABS or PBT
Self-extinguishing acc. To UL 94: V-0
Character:
Insulation Resistance: ≥1000mΩ
Dielectric Strength: ≥1000V (AC voltage, 50HZ for 1 min)
Contact Resistance between conductor and reed: ≤7mΩ
Conductor Diameter range: 0.4mm – 0.8mm
Pulling Strength: ≥25N
