Home >Products Catalog > Standalone DVR > DVR with 7 inch Hidden TFT Monitor (SC-8004T)

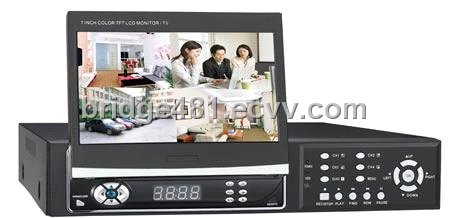

DVR with 7 inch Hidden TFT Monitor (SC-8004T)

Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	One Week
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shenzhen in China
Packaging Details:	Color Box&OEM

Specifications

Feature of DVR with 7 inch Hidden TFT Monitor:

Advanced RTOS; H.264 compression,Support D1;
Software upgrade via USB;
USB mouse control;
PTZ and network function;
Multi-language versions are selectable;
8004T 7 Inch Hidden TFT monitor
Support mobile remote surveillance;
Support network center management system;
Applied in large surveillance area such as bank,supermarket, gas station, factory etc.

Specification

Model NO.	SC-8004TP
Operation System	Embedded Linux
Compression	H.264
Video Input/Output	4 channel BNC input/2 channel BNC output
Audio Input/Output	4 channel BNC input/1 channel BNC output
Display Frame Rate	NTSC: 120 fps (4x30 fps)
Display Frame Rate	PAL: 100 fps (4x25 fps)
Record Frame Rate	NTSC: 120 fps (4x30 fps) CIF
Record Frame Rate	PAL: 100 fps (4x25 fps) CIF
Record Mode	Manual﹑Schedule﹑Motion Detection
Image Quality	CIF/HD1/D1 selectable
Record Resolution	NTSC:352x240(CIF) 704x240(HD1) 704x480(D1)
Record Resolution	PAL:352x288(CIF) 704x288(HD1) 704x576(D1)
Playing Mode	1 channel or 4 channel
Searching Mode	By time/By event/By channel
HDD	Support 1TB SATA HDD
Alarm Input/Output	4 channel input/1 channel output
Internet	IE/PPPoE/DDNS
Remote Control	Yes
Mouse Control	USB
USB Port	USB 2.0
PTZ Control	Yes
Language Support	Simplified Chinese,English
VGA Output	No
Software Upgrade	USB
7 Inch Hidden TFT monitor	Yes
Mobile Surveillance	Support Symbian s60 v3.0 , Mobile Pocket PC operation system
Remote Power Supply	DC 12V remote power supply
Power Supply	19V/3.42A DC
Working Temperature	-10℃ ~ +50℃
Working Humidity	10%~90%
G.W/N.W	6.1KG/4.5KG
Meas(LWH)	330 x 360 x 60mm
