Ningbo Desin Lighting Co., Ltd.
China Manufacturer with main products: Solar LED Street Light, Desk Lamp, LED Lamp, Electric Ballast |

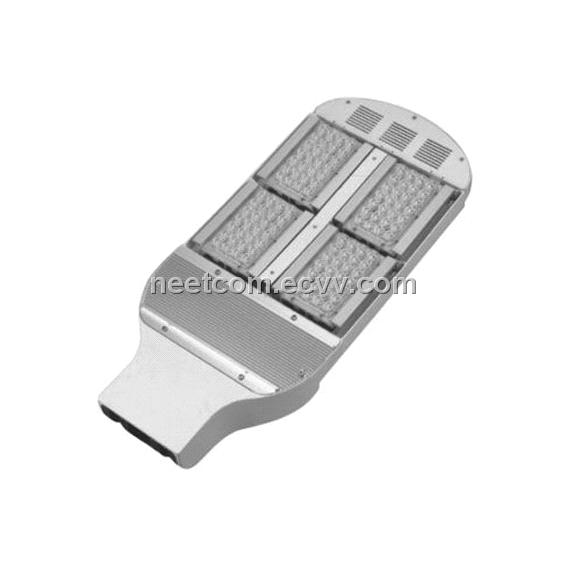

LED Street Light
| FOB Price: | 1.00 - 2.00 USD/Piece |
|---|---|
| Shipping: | About 15 |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|---|
| Packaging Details: | carton |
Specifications
Product Name LED Street Light
Model No. LR-4U
Certificates CE
MOQ 5 pcs
Payment Term T/T, L/C
Warranty 36 Months
Input Voltage AC 85～270V
Frequency Range 46~65Hz
Power Factor(PF) ＞0.95
Total Harmonic Distortion ( Thd) ＜20%
Power Efficiency ≥86%
Working Voltage 24VDC
LED Consumption 56w
Power Supply Consumption 9w
LED Luminous Efficiency 120lm/W～140Lm/W
LED Initial Flux 7280 lm(Tj=25°C)
LED Maintain Flux 6910lm(Tj=60°C,Ta=25°C)
Lamp’S Flux 6210lm(Tj=60°C,Ta=25°C)
Lamp’S Efficiency (%) ＞85%
Illumination (E) Height 6m: ≥58LUX
Height 7m: ≥43LUX
Height 8m: ≥33LUX
Height 10m: ≥20LUX
Height 12m: ≥13LUX
Effective Illuminated Area Height 6m: 22×12m
Height 7m: 25×13m
Height 8m: 28×14m
Height 10m: 32×15m
Height 12m: 34×16m
Color Temperature Pure White: 5,000～7,200k; Yellow :2,500～3,500k
Color Index(CRI) Ra＞75
Light Source SUNPU Emitter (1watt)
Light Distribution Curve/Beam Pattern Asymmetric (Bat Wing)/ Rectangular Beam
The Highest Light Intensity Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, The Vertical Axis:45°
Beam Angle 120°:The Horizontal Axis:120°, The Vertical Axis:60°;
140°:The Horizontal Axis:140, °The Vertical Axis:60°
Junction Temperature(Tj) 60 °C ±10 %( Ta=25°C)
System Resistance (Rja) 0.56°C/W
Working Temperature -30°C～45°C
Working Humidity 10%~90%RH
Storage Temperature 10°C～85°C
Working Life ＞80000 Hrs
Light Body& Lampshade Aluminum Alloy And PC
IP Rating IP65
The Dimensions(Units: mm) 565(L) x 315(W) x 95(H)
Net Weight 11Kgs
Packing 1pc /Carton
Carton Size 890 x 410 x 200 mm
G.W 12Kgs
Container Q’ty (pcs) 20’Q: 356pcs 40’Q: 740pcs, 40’HQ: 932pcs
