Rhya Technology Ltd
China Manufacturer with main products: apc ups, oem ups, ups, inverter, battery |

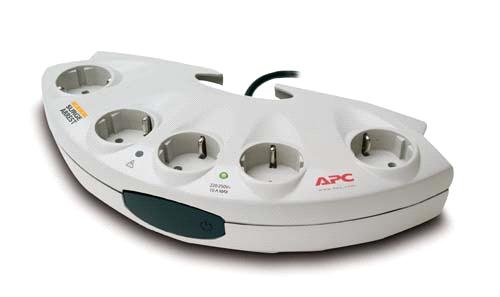

APC Plug (E15)
| Payment Terms: | T/T(Bank Transfer), Western Union, PayPal |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Guangdong in China |
|---|
Specifications
Output
Number of Outlets
5
Receptacle Style
CEE 7 Schuko
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
| Schuko CEE 7 / EU1-16P |
Maximum Line Current per phase
10A
Cord Length
1.83 meters
Surge Protection and Filtering
Surge energy rating
1020 Joules
eP Joule Rating
--
EMI/RFI Noise rejection (100 kHz to 10 MHz)
10 dB
Peak Current Normal Mode
10 kAmps
Peak Current Common Mode
20 kAmps
Data Line Protection
--
Data Lines Protected
(multi-line only)
(multi-line only)
--
Let Through Voltage Rating
< --
Physical
Net Weight
0.77 KG
Maximum Height
59.00 mm
Maximum Width
311.00 mm
Maximum Depth
127.00 mm
Shipping Weight
0.95 KG
Shipping Height
64.00 mm
Shipping Width
318.00 mm
Shipping Depth
184.00 mm
Master Carton Units
12.00
Master Carton Dimensions (Length x Width x Height)
57 X 28 X 34 inches
Master Carton Weight
27.80 lbs.
SCC Codes
10731304000607
Color
Beige
Units per Pallet
288.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Conformance
Regulatory Approvals
CE,VDE
Standard Warranty
3 years (all other countries),Lifetime (European Union countries only)
UL 1449 TVSS Rating
--V
