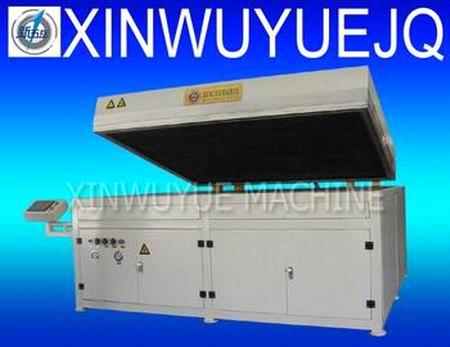

Seme-Autu Solar Module Laminator

FOB Price:	26200.00 - 27800.00 USD/Set
Supply Ability:	2 Set/Sets per Month
Shipping:	1 month
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Product Details

Place of Origin:	Shandong in China
Packaging Details:	wooden package

Specifications

Equipment survey:

Size: 2480×2700×1290 weight: 4.5T

Power supply: 380V five phase air supply: 0.6-0.8Mpa

Compressed air flux: 0.22M3/min highest working temperature: 180℃

Max.vacuum: 10Pa Temperature uniformity: ±1℃

Power: 45KW(Max) 15KW(working)

Main technical parameters:

1.Control characteristic: including automated mode and manual mode ,flexible control mode integrates with techniques of vacuum,laminating,PID temperature control,program control and relay output,which realizes various complicated control technology and laminates solar modules of single-crystal and multi-crystal silicon

2.Control system :simenses control system, touch -screen control system

3.Heating mode : adopts cycle heat oil

4.Mode of temperature control: muilti-point control temperature,PID system

5.working temperature range: room temperature --180℃

6.laminating time: 2～4min

7.evacuation time: : 5～8min

8.work vacuum: 100～15Pa

9.top cover stroke: 300mm

10.operating environmental: can work in industry and laboratory environment

Equipment characteristic:

The laminator adopts the integration of patented technologies in the vacuum chamber and heating board,with high vacuum,no deformation.

the rubber of upper cover adopts crumpled-resistance technology, extends the lifetime of the rubber and improves the quality of the laminating modules.

vacuum sealed strip of rubber on the top is easy for installation and with long lifetime.

4.The gasbag rubber adopts flame form flange fixed,very convenient to disassmble and easy to change rubber

there is non-polluting , hygiene with pneumatic lifting structure ,open cover smoothly, no noise .the independent structure of heating stations is easy to install storage adjustment ,and convenient for maintenance,

the unique structure of welding-type heating tank to ensure the excellent uniformity of surface temperature.

7.Unique welding heating slot structure,which ensure good surface temperature uniformity

8. the vacuum valve of special design of laminator makes the machine running reliably, long lifetime, maintenance easily and ensure the high vacuum of the equipment .the chain of transmission makes transferring smoothly with low noise .

Safety precautions

1.The upper cover will stop lowering immediately to protect the safety of personal when the operator enters dangerous regions in the process of lowering the upper cover. upper cover is self-locking .:the cylinder is self-locking when the upper stops

Going up. the upper cover will not go down without commanding .

emergency button: emergency buttons are set up in multiple locations. Operator may press the button promptly when emergency occurs, emergency stop can keep the equipment with original state of the same process .

emergency operating system: it can realize aeration and opening cover with emergency operation systems in the when the power is stopped suddenly .

the high temperature protection is set up in the heating systems.

there is low-level detection and alarming systems in the heating transfer oil circulating systems to prevent danger due to lack oil. the three-color warning lights provide operation state and alarming signal timely and accurately .

vacuum alarming system: the system will alarm when the equipment can not be fit for the acquirement in the vacuumized time. protection of module out for conveyor. it can avoid losing economics exceptional circumstances

Applicability

1.it can operate 24 hours continuously in high temperature,which is applicable in industry and laboratory environment

2.It can be laminated and consolidated, has high module compatility

Function characteristics

1.Flexible control: it adopts manual, semi-automatic and automatic operation .it can adopt automatic operation in normal production ; the operation is simple with high working efficiency and can reduce labors’ intensity of workers. It can adopt manual operation for debugging and troubleshooting ;it can also adopt semi-automatic operation according to the specific circumstances.

Control systems with high configuration :all controllers use Siemens plc, make running stable and reliable. it can be easily realized to communicate by computer ,it is correspondence with modern acquirement of industrial automatic control.

simple and friendly operation interface: the operation platform use high-quality touch-screen, friendly interface, high sensitivity, easy to operate, easy to learn. set up parameters simply, with a variety of technical parameters showing, convenient for monitoring .

high temperature uniformity: it is heated by heating transfer oil, heating cycle with a unique pipeline systems so that the temperature uniformity of work platform can up to ±1.5 centigrade automatic memory of technical parameters: it can modify the production process parameters freely. do not worry about losing or re-designing it for next running. It can supply latest parameters about the quality of modules,statistics of lamination times; the system is with statistics functions of lamination times, it is easy for checking worker times and output of the modules. it can be as reference for maintenance and replacing consumable spare parts.

integrated control technology: it can realize complicated polytechnic acquirement of laminating and curing monocrystalline silicon and polycrystalline with vacuum technology, pressure transmission technology, PID self-tuning technology, programmable control and relay control systems .

accurate high vacuum system: it will realize quantization control of vacuum on the screen at any time, system is with high measuring accuracy. strong anti interference ability. the stability of the system is good accurate position for module in and out .it adopts precise aluminum pipe passive forming technology to guarantee the accuracy of feeding location, and prevent incorrect place.

systems and buttons of emergency, operator can open the upper cover manually when the power stops, it will be forced stoppage with emergency button in emergent situations

accurate reliable alarming functions: it is including malfunction alarm of air supply, vacuum, oil level ,high- temperature, frequency-transformer and electric machinery, it is convenient for checking. maintaining and analysis.
