Product Details

Place of Origin:	Henan in China

Specifications

Characteristics

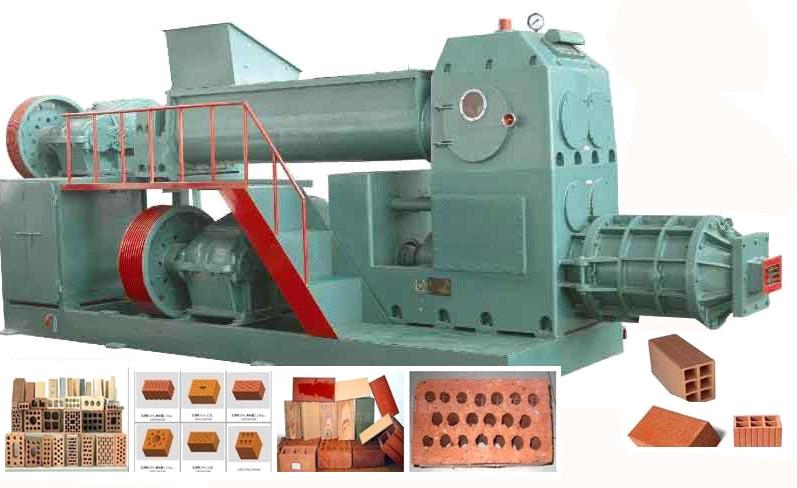

This machine adopts the design of the strong combine, the principle axis bearings of the extrusion system and the mireurn are connected for integral whole, which aims to keep the coaxiality of the main shaft. Thus, the extrusion will be uniform whith strong extruding pressrue and small wave motion. In addition, it also adopts the design of flexible top and bottom combinative form. The top side is used to compress the mire in advance to guarantee high vacuum degree, thus, the brick will be more dense and solid. It's applicable to make all kinds of hollow bricks with raw material of coal gangue, shale, fly ashe and clay.

Technical Parameter

Model	Production Capacity(pcs/h)	Power(KW)	Rotation Speed of Main Shaft(r/min.)	Dimension(mm)
JKY60/60-40	16000-20000	Y6-75/Y6-220	32/20	5450x5960x2700
JKY50/50E-40	12000-16000	Y6-55/Y6-160	38/25	5300x5550x2500
JKB50/50B-35	12000-16000	Y6-55/Y6-160	38/25	6500x1850x2500
JKB50/50C-30	12000-16000	Y6-55/Y6-160	38/25	6470x1800x2500
JKB45/45D-30	11000-14000	Y6-45/Y6-110	40/28	6320x1800x2420
JKR45/45F-25	11000-14000	Y6-45/Y6-110	40/28	6100x1680x2370
JKR40/40F-20	9000-12000	Y6-45/Y6-90	40/35	5400x1600x2220
JKR35/35D-20	7000-9000	Y6-22/Y6-75	32/32	5000x1550x2050
