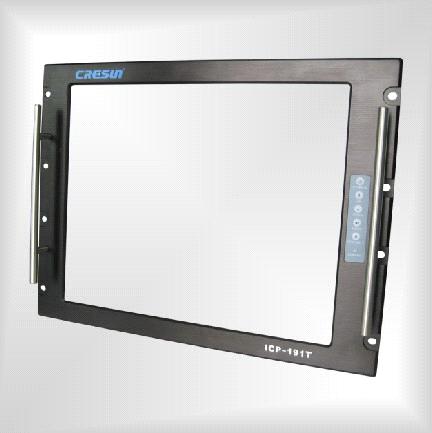

Industrial Display (ICP-191)

FOB Price:	10.00 - 10000.00 USD/Piece
Supply Ability:	10,000 Piece/Pieces per Month
Shipping:	3~15 days
Payment Terms:	T/T(Bank Transfer), Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	1pc/Pearl-cotton/polybag/threeply cartons

Specifications

system

Touchscreen (optional)    USB/RS-232
Display interface      Standard 15 pin D-SUB interface ,RGB signal ,Provide multi-scan function.AV,TV is optional.
Power adapter          DC12V@4A
Operating system      Windows,NT,UNIX,LINUX,NOVELL,DOS ,etc..
Structure      19″8U Rackmount Monitor

Color     Standard black (support OEM)
Dimension      483 mm(L)×343mm(W)× 52mm(H)

Environment
Work temperature    0℃-50℃
Storage temperature   -20℃-60℃
Work humidity    5%-90%, 40℃ Non-condensing
Vibration         5-17Hz, 0.1-inch double amplitude displacement; 17-640Hz, 1.56 peak-peak acceleration
Impact        10G peak-peak acceleration, duration is 15MS in the X, Y, Z axis
Input:     AC100-240V 50/60HZ 0.8A

LCD
Display         19”TFT LCD
Visual Area   375mm(H) ×300mm(V)
Best Resolution 1280×1024
Color 16.7M
Pixel Pitch          0.294mmX0.294mm
Brightness          300cd/㎡
Viewing Angle    160?(H), 170?(V)
Backlight      MTBF 50000hrs
Touchscreen (optional)
Type       4-wire resistive
Resolution     4096×4096
Touch Range   378mm×303mm
Operating pressure   25G(General standard)-35G
Yang resistance characteristics   300
The average displacement difference   1%
Life        More than 1 million times
Port        RS-232/USB
Operating system   Windows,NT,UNIX,LINUX,NOVELL,DOS and so on.
