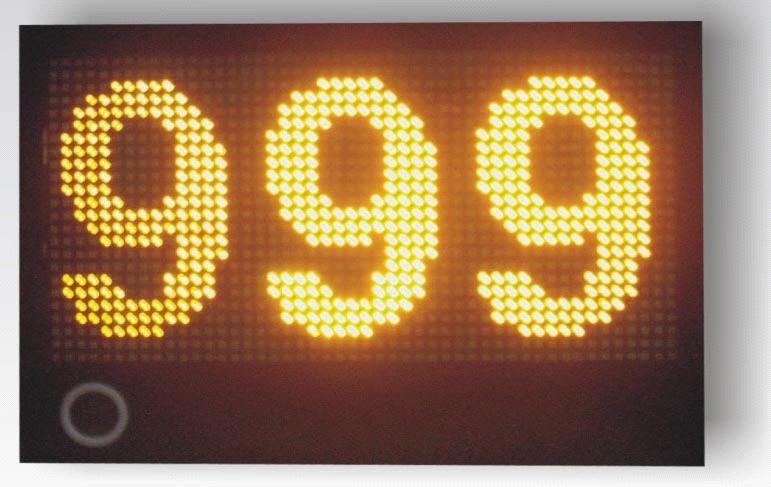

Radar Speed Display Sign (DN-SDR3B-B1)

Speed Display Signs Character:
1. Showing the fastest or closest one speed in the same direction only.
2. Detecting distance is from 2_300m( For 5 Seats Santana).
3. High-Intensity 2 color LED display, red means overspeeding, yellow means safe, can be seen 200m away.
4. Continual showing time of the target is adjustable from 0.4_10 seconds, dispaly pattern is adjustable(still or flash), brightness can be adjusted(still, automati_avoiding the sight uncomfortableness on ninght)
5. With professional radar, the tolerance is +1km, reducing to be found by the electric dog because of the pulse beam, quantity of radiation is less and decrease harm to the body.
6. Can be used for different condition by setting the time and light control.
7. Remote controlling or traffic flow analyzing is convenient for optional GSM/GPRS model.
8. Power: AC or solar, multi external, super low consumption, works for 168 hours continuously, and with 80w solar energy plane.
9. Easy to assembly, built-in battery, needn't to dig.
10. LCD guide, operate easily.

Display Form:      Digits and word

Housing Size:      120cmX85.5cmX15cm

Weight:            45KGS

Powering:          11 to 14.5VDC, or 110VAC,                                                                                                                                        or 220VAC

Electric Current:  Maximum 3.1Amps

Radar Style:       Hopping Radar

Frequency:         24.150GHz

Speed Range:       20-199 Km/h

Radar Range:       800M (Santana>=200M)

LED Wavelength:    Red 625±5

                   Yellow 590±5                                                                                                                                       LED angle:         30°

Operating Temps:   -40C to 70C
