Optec Communications Technology Co., Ltd.
China Manufacturer with main products: Fiber Optic Fusion Splicer, Light Source, Fibre Splicing Machine, Fiber Fault Locator, Fiber Cleaver, Palm OTDR, Power Meter, Multimeter |
Cable Fault Locator (Pt-3304N)
| Supply Ability: | 20 Set/Sets per Month |
|---|---|
| Shipping: | 2 days |
| Payment Terms: | T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Jiangsu in China |
|---|---|
| Packaging Details: | tool case |
Specifications

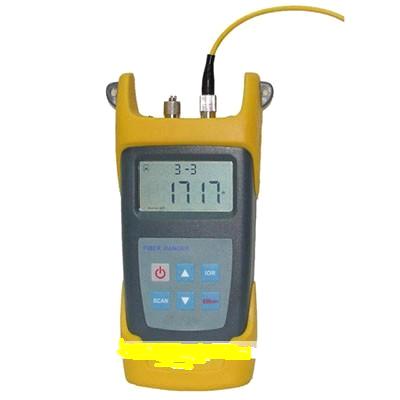

Cable Fault Locator Pt-3304N
Pt-3304N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the Pt-3304A fiber ranger detect fiber faults location more accurate and easy.
Features
• Portable, rugged, lightweight; Easy to use.
• More accurate testing result and better repeatability.
• Up to 8 fiber faults can be detected in each measurement
• Automatic Pulse Width Control design to ensure a convenient operation.
• Easy to identify the faults location
• Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
• Dust, water and shock proof, designed for field use
• Long battery life, up to 5000 measurements operation.
Applications
• Maintenance in Telecom
• Maintenance CATV
• Test Lab of optical fibers
• Other Fiber Optic Measurements
Features
• Portable, rugged, lightweight; Easy to use.
• More accurate testing result and better repeatability.
• Up to 8 fiber faults can be detected in each measurement
• Automatic Pulse Width Control design to ensure a convenient operation.
• Easy to identify the faults location
• Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
• Dust, water and shock proof, designed for field use
• Long battery life, up to 5000 measurements operation.
Applications
• Maintenance in Telecom
• Maintenance CATV
• Test Lab of optical fibers
• Other Fiber Optic Measurements
Specification
|
Model
|
Pt-3304N
|
|
|
Operating wavelength
|
1550nm (1310nm optional)
|
|
|
Fiber type
|
9/125um SM fiber
|
|
|
Optical connector type
|
FC/PC
|
|
|
Detector type
|
InGaAs
|
|
|
Peak power of laser
|
≥60mW
|
|
|
Max.displaying distance
|
Reflection event
|
60km(≥1dB)
|
|
Non-reflection event
|
20km(≥2.5dB)
|
|
|
Measurement unit
|
M
|
|
|
Reflection event dead zone
|
15m
|
|
|
Distance accuracy (reflection event)
|
±(2m+2*10(-3)*distance)
|
|
|
Wavelength of VFL option
|
650nm
|
|
|
Output power of VFL option
|
≥1mW
|
|
|
Power supply
|
Alkaline battery(3pcs AA 4.5V Batteries)
|
|
|
Battery operating time
|
≥5000 measurements
|
|
|
Working temperature
|
-5-40℃
|
|
|
Storage temperature
|
-10-60℃
|
|
|
Humidity
|
0-85% (non-condensation)
|
|
|
Dimension
|
190*100*50mm
|
|
|
Weight(g)
|
350
|
|
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
