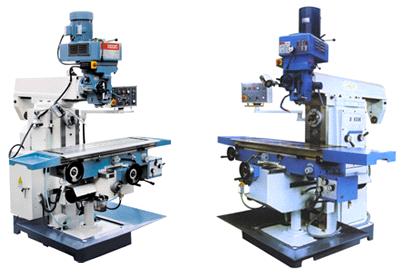

Turret Milling Machine

Shipping:	60 DAYS
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Packaging Details:	IRON PALLET

Specifications

MODEL	X6332C	X6336
Code No.	201033	201034
Spindle taper	ISO40	ISO40(V) ISO50(H)
Spindle travel(mm)	150(vertical)	140(vertical)
Sleeve feed(mm/r)	0.04/0.08/0.15(3 steps)	0.04/0.08/0.15
Distance from spindle to column(mm)	200-550(vertical)	200-600
Distance from spindle to table(mm)	150-500mm(vertical)	190-570
Distance from spindle center to table surface(mm)	0-350(horizontal)	0-350
Distance from spindle center to arm(mm)	190(horizontal)	230
Spindle speed range(r/min)	(20steps)76-6980rpm(V) (12steps)60-1350(H)	75-3500(V) 60~1800/12(H)
Table size(mm)	1250×320	1250×360
Table travel (x/y/z) (mm)	800x300x300	1000×320×380
Range of longitudinal, cross travel(mm/min)	15-370(8 steps)540(max.)	15~370/(MAX.540)
Vertical up-down speed table(mm/min)	560	590
T-slot NO./width/distance of rotary table(mm)	3/14/70	3/18/80
Main motor(kw)	3.7(V)/2.2(H)	5.5(V)/4(H)
Motor for rapid device of table(w)	750	750
Motor of lifted table(w)	110	110
Speed of cooling pumps(L/min)	12	25
N.W/G.W.(kg)	1750/1950	2340/2540
Overall dimension(mm)	1720×1520×2225	2220×1790×2360

STANDARD ACCESSORIES:

u Drill chuck

u Spindle arbor

u Wedge shifter

u Wrench

u Inner hexagon spanner

u Vice

u Milling chuck

u Milling arbor

u Draw bar
