Yueqing Sandi Electric Co., Ltd.
China Manufacturer with main products: Solar Inverter, Solar Pumping Inverter, Grid Tie Inverter, on Grid Inverter, PV Combiner Box, off Grid Inverter, Pure Sine Wave Inverter,... |

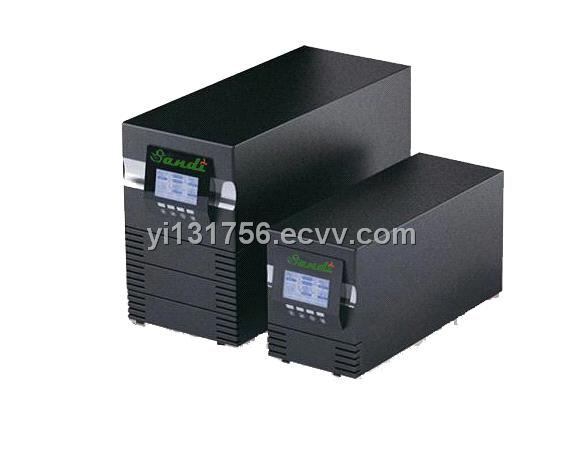

Online UPS with Large LCD Display
| Supply Ability: | 999,999 Piece/Pieces per Month |
|---|---|
| Shipping: | 7days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|
Specifications
| Product Series | Online ups with large LCD Display (1-3kva) | ||||||
| Model | SDU 1KT | SDU 1KT-XL |
SDU 2KT |
SDU 2KT-XL |
SDU 3KT |
SDU 3KT-XL |
|
| Capacity | VA/W | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | |||
| Input | Low Line Transfer | 160VAC/140VAC/120VAC/110VAC ± 5VAC | |||||
| Low Line Comeback | 175VAC ± 5VAC | ||||||
| High Line Transfer | 300VAC ± 5VAC | ||||||
| High Line Comeback | 285VAC ± 5VAC | ||||||
| Frequency Range | 50Hz: 46-54Hz; 60Hz: 56-64Hz | ||||||
| Phase | Single phase with groud | ||||||
| Power Factor | ≥0.95 | ||||||
| Output | Voltage | 220/230/240VAC | |||||
| Voltage Regulation | ± 2% | ||||||
| Frequency | Synchronization range (line mode);50 or 60 × (1±0. 2%) Hz (Battery mode) | ||||||
| Current Crest Radio | 3:1 | ||||||
| Voltage Distortion | ≤3% THD (Linear Load) | ≤4% THD (Linear Load) | |||||
| ≤4% THD (Linear Load) | ≤4% THD (Linear Load) | ||||||
| Waveform | Pure Sinewave | ||||||
| Battery | Type and Number | 12V/7AH 3 | Depending on the capacity of external batteries | 12V/7AH 8 | Depending on the capacity of external batteries | 12V/7AH 8 | Depending on the capacity of external batteries |
| Back up Time (full load) | ＞5 minutes | ＞9 minutes | ＞5 minutes | ||||
| Recharge Time | 5 hours to 90% | 5 hours to 90% | 5 hours to 90% | ||||
| Charging Current | 1.0A | 8A | 1.0A | 8A | 1.0A | 8A | |
| Changing Voltage | 41.1VDC ± 0.6V | 110VDC ± 0.4V | 110VDC ± 0.4V | ||||
| Transfer Time | AC to DC | Zero | |||||
| Inverter to Bypass | 2.5ms (Typical) | ||||||
| Indicator | Staus | Load Level / Battery Level / Battery Mode / AC Mode / Bypass Mode / Fault | |||||
| Audible alarm | Overload | Sounding twice every second | |||||
| Low Battery | Sounding every second | ||||||
| Fault | Continuously Sounding | ||||||
| Battery Mode | Sounding every 4 seconds | ||||||
| Physical | UPS Case | 482.6×450×87 (w.battery) | 482.6×450×87 (w.battery) | ||||
| Dimension D× W× H(mm) | 400×145×220 | 46×192×340 | |||||
| Net Wight(Kg) | 14 | 7 | 34.5 | 15 | 35.5 | 16 | |
| Environment | Operating Environment | 0-40℃ ,20-90% relative humidity (non-condensing) | |||||
| Noise Level | Less than 45dB@1 Meter | Less than 50dB@1 Meter | |||||
| Interface | Smart RS232 | Software Support Windows family,Linux,Sun Solaris,IBM Aix,Compaq True64,SGI IRIX,FreeBSD,HP-UX and MAC | |||||
| SNMP (Option) | Power management from SNMP manager and web browse | ||||||
| USB Pption | Support Windows family and MAC OS | ||||||
