Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

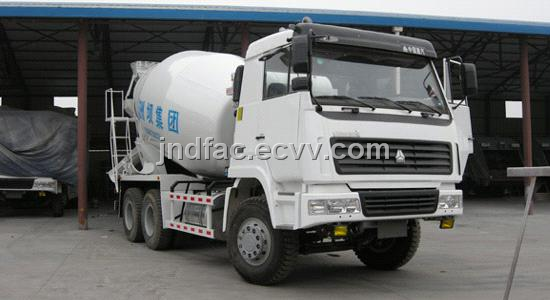

Styer 6*4 Concrete Mixer Truck
| FOB Price: | 30000.00 - 50000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | 20 workdays |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | waxing,according to buyer's need |
Specifications
| Name | Styer 6*4 concrete mixer truck | L×W×H mm | 8775×2496×3800(mm) |
| Chassis Model | ZZ1256M3646C | Cargo body Dimension(mm) | ××(mm) |
| total mass | 25000(Kg) | Approach/Departure angle | 15/26(°) |
| Rated mas | 11840(Kg) | front/rear suspension | 1560/2265(mm) |
| curb mass | 13030(Kg) | Max. speed | 75(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
|
WD615.92 WD615.93 WD615.92E WD615.93E WD615.97C WD615.97E WD615.92C WD615.93C |
SINOTruck Group Co., Ltd. |
9726 9726 9726 9726 9726 9726 9726 9726 |
196 213 196 213 221 221 198 213 |
| Emission standard | EuroⅢ | ||
| Axle | 3 | front tread | 1939,1958/1800/1800,1830/1830(mm) |
| wheelbase | 3600+1350mm | rear tread | 1800/1800,1830/1830(mm) |
| tyre | 10 | tyre size | 11.00-20,11.00R20,12.00-20,12.00R20 |
| fuel type | diesel | spring | 9/12,9/- |
| axle load | 7000/18000(double axles) | cab passenger | 2 |
| Note | mixing tank capacity: 10 m³ | ||
|
Special
performance |
Our company specializes in producing Dongfeng 140 concrete mixer truck, Dongfeng 145 concrete mixer truck, Dongfeng Dalishen concrete mixer truck, Dongfeng Tianlong concrete mixer truck, Jiefang double axle concrete mixer truck, Styer concrete mixer truck, Auman concrete mixer truck, Hongyan concrete mixer truck etc.
Concrete mixer truck we produce has sizes of 3m³, 3.5 m³, 4 m³, 5 m³ ,6 m³, 8 m³, 9 m³ ,10 m³, 12 m³, which can meet different needs of customers. Chassis is domestic and international famous brands, while speed reducer is American or Italy brand, which can ensure the truck’s stability and reliability.
The truck consists of under frame, mixing tank, transmission (drive device), hydraulic drive system, water charging system, feeding system, discharge chute, operation platform, control system and protecting device.
Mixing tank: the structure is an ordinary pear shape. Mixing water which is supplied during the transporting process is injected into tank from the head of mixing tank.
Transmission system: the drive method of mixing tank is taking engine as power source, and takes power from PTO on the rear part of engine. The power is transmit through transmission shaft to variable plunger pump and mixing tank rotates through speed reducer.
Feeding and charging system of mixing tank: important device which can help mixing tank work.
Operation system: control unit of the truck. There is “H” shape groove on control panel, which is moving space of control stick; there is spacing hole on rear part of groove, which is used for fixing the position of control stick. There is a left control stick and a right control stick on the tail part of truck, which are used to control mixing tank’s prograde, invert and speed.
Water supply system: mainly use for cleaning mixing system. There are two kinds of water supply: one is centrifugal pump water supply; the other is pressure tank water supply.
|
||
Leave me a message if interested,and i will reply you asap.
