Home >Products Catalog > other plastic machine > Light weight glazed tile making machine

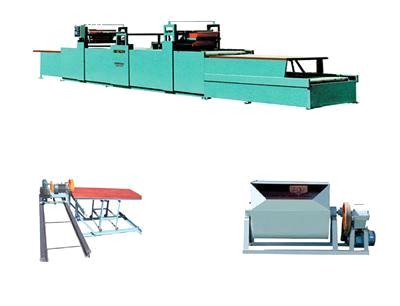

Light weight glazed tile making machine

Payment Terms:	T/T(Bank Transfer)

Inquiry Now

Related products from verified members

EPS/ROCKWOOL sandwich panel line

Price:100,000.00-150,000.00 USD/Set

Min. Order:1 Set
Control System

Price:

Min. Order:
Roof Tile Forming Machine

Price:

Min. Order:1 Set
Automatical sandwich panel forming machine

Price:1,060,000.00-1,250,000.00 USD/Set

Min. Order:1 Set
rubber tile production line

Price:4,500.00-6,000.00 USD/Set

Min. Order:1 Set
Roof Tile Production Line

Price:7000.00-100000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Hebei in China

Specifications

Brief introduction:　　 The machine set is composed of Entering Period, Processing Period And Carrying Period. Auxiliary equipment includes cut off machine and pug mill. Its operational principle: electric motor drives step down gear to revolve, which make polyester film put on the carrying belt, plasma-like materials from charging spout, fiberglass cloth paved forward with carrying belt.Plasma-like materialsfall from charging spout and are extruded by pressure roller to slab stock, then transport to next working procedure, produce the finished-goods through pattern plate.

Main function:　　 The machine is specialize in processing the Glass-Type Light-Weight Tile.The Properties of glass-type light-weight tile are as following:1, Pressure resistance; break resistance, low water absorption, and high antifreeze capacity; 2, Long life, which is longer than asbestos tile;
3, Anticorrosion is strong, which is better than iron tile; 4, flame resistance, fireproofing, wind proofing and anti-aging, which is better than resins tile and plastic tile; 5, Raw materials are available widely (★The main raw materials are Magnesium Chloride and Magnesium Oxide). The tile is widely used for building factory, warehouse, canopy gallery in oil field, forest, smelting, paper-production, cement, chemical industry, industry and mining enterprises. Advantage:

1, Production speed, thickness of the tile can be adjustable easily.

2, Setting film down, material slurry supply, laying the fiberglass cloth can be accomplished synchronously.

3, The performance of dispelling air is good, and there is no air bubble in products

4, High productivity, which is 4~5 times higher than that of hand-making tile.

5, Compact structure, easy use, low energy consumption, high production, and good-quality tile. 6, Thickness of the whole tile is even, which is better than hand-making tile.

OEM service:We offer any kinds of tiles which are thickened , lengthened and are below 180cm according to user’s needs. Tile’s color depends on waterproof paint containing color. The dye depends on the use’s requirement

Notice:　　 As for parameter, we can make a suitable change according to actual needs for design. If dates on the website don’t correspond to actual product, you should refer to actual product.

Moter power (kw)	Specifications L×W(mm)	Reference output	Dimensions L×W×H( mm)	Weight (kg)
2.2	1800×720	2500	11000×1500×1800	15
