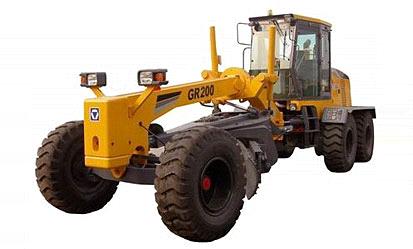

Motor Grader (GR200)
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 25 days |
| Payment Terms: | T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Liaoning in China |
|---|---|
| Packaging Details: | nude with sprayed wax |
Specifications
|
Basic specification
|
|
|
Engine model
|
D6114 ZG14B
|
|
Rated power/speed
|
147kW/2200rpm
|
|
Dimension(LxWxH)
|
8932×2625×3470mm
|
|
Operating weight(Standard)
|
16000kg
|
|
Performance specification
|
|
|
Travelling speed ,forward
|
5, 8, 11, 19, 23, 38 km/h
|
|
Travelling speed ,reverse
|
5, 11, 23 km/h
|
|
Tractive force(f=0.75)
|
82KN
|
|
Max. gradeability
|
20%
|
|
Tire inflation pressure
|
260 kPa
|
|
Working hydraulic pressure
|
16 MPa
|
|
Transmission pressure
|
1.3～1.8MPa
|
|
Operating specification
|
|
|
Max. steering angle of front wheels
|
±50°
|
|
Max. lean angle of front wheels
|
±17°
|
|
Max. oscillation angle of front axle
|
±15°
|
|
Max. oscillation angle of balance box
|
15
|
|
Frame articulation angle
|
±27°
|
|
Min. turning radius using articulation
|
7.3m
|
|
Biade
|
|
|
Maximum lift above ground
|
450mm
|
|
Maximum depth of cutting
|
500mm
|
|
Maximum blade position angle
|
90°
|
|
Blade cutting angle
|
28°—70°
|
|
Circle reversing rotation
|
360°
|
|
Moldboard width X height
|
4270×610mm
|
