Home >Products Catalog > thickness meter > Ultrasonic Thickness Gauge TM-8812

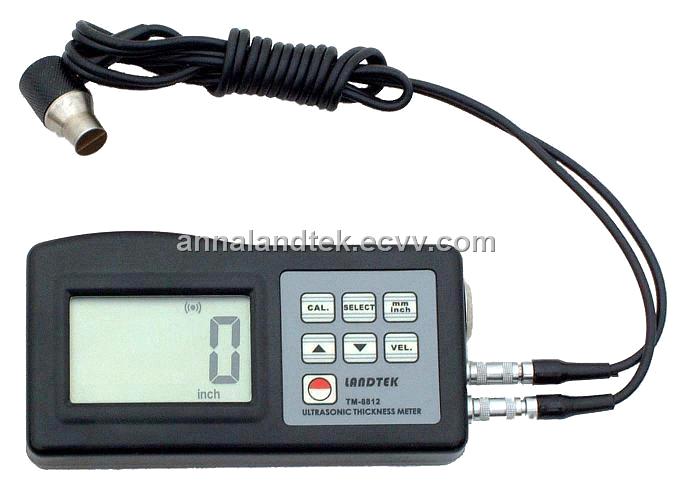

Ultrasonic Thickness Gauge TM-8812

FOB Price:	1.00 - 800.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	3~5 days
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton

Specifications

Application:
        Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Model: TM8812 TM8812C
Measuring range (metric/imperial): 1.0-200mm,0.05-8inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
Calibration block: included
Resolution: 0.1mm(TM8812C 0.01mm)
Accuracy: ±(0.5%n+0.1)
RS232C interface: with RS232C
Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 120x62x30mm
weight: 164g(not including battery)
Optional Accessories:
                                 6MФ6mm thin Material probe:Measuring range(steel): 1.0 50.0mm   Operating temperature: -10~+60℃
                                 5MФ12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
