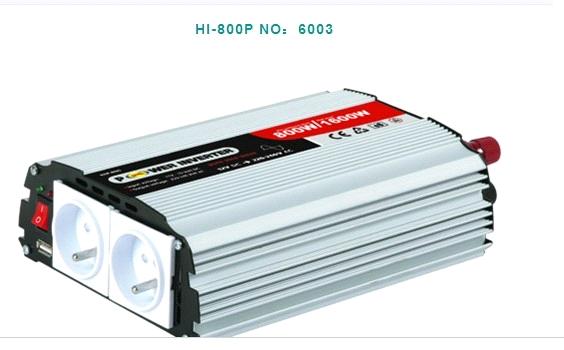

Pure Sine Wave (HI-800P NO:6003)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Specifications

Applying area:

Products which their power are less than 800W, like electrograph, mini-vacuum cleaner, copycat, micro-wave oven, etc.

Protection:

Overload protection, high temperature protection, short circuit protection, reverse polarity protection.

Auto re-start function:

When the inverter shuts off once it being in protection, it is not necessary to press the switch (on/off), just moving the high loads, the inverter can restart automatically. So there is no need to place the spare fuse.

Item	HI-800P
Continuous power	800W
Surge capability	1600W
Input voltage	10-15VDC/24VDC
Output voltage	100/110/120VAC /220/230/240VAC
Frequency	60Hz/50Hz
Output waveform	PURE SINE WAVE
Efficiency	>90%
State current	<500mA
Low input voltage protection	(10±0.5)/(20±0.5)V
Low input voltage warning	(10.5±0.5)/(20.5±0.5)V
Output overloading protection	960W
With cooling fan	Yes
Packing details	color box carton 492935cm 20pcs/ctn
