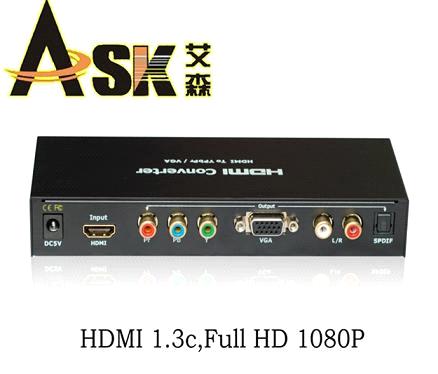

HDMI to Vga/Ypbpr+spdif Converter

Supply Ability:	20,000 Set/Sets per Month

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

10/100M Fiber Media Converter (Built-In Power S...

Price:

Min. Order:1 Piece
GSRQ1 Series of Motor Soft Starter

Price:727.00-13,800.00 USD/Piece

Min. Order:10 Pieces
2 Fiber Port and 2 RJ45 Port 1000M Industrial F...

Price:

Min. Order:1 Unit
Mini Displayport to HDMI Converter with Audio

Price:7.50-10.00 USD

Min. Order:
PT100 thermocouple temperature sensor thermal c...

Price:

Min. Order:1 Piece

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	OEM,OBM

Specifications

The HDRC0102 Converter use a single HDMI sourceï¼Œaccessing to single VGA+SPDIF sink or single YPbPr+SPDIF sink. The Converter allows one HDMI device to be converted easily to one VGA+SPIDF or one YPbPr+SPIDF/R+L monitor or projector.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

One HDMI input signal convert to one YPbPr+SPDIF+R/L or VGA+SPDIF sink device

Support video input : HDMI 1.2a

Support audio output : SPDIF(Optical)+ R/L analog .

Support output : Support up to UXGA and 1080P(50/60Hz),the same format as input

HDCP 1.2 protocol compliant

LED indication : when source or sink is working, LED relative to is light.

No loss of quality

Installs in minutes

Need DC5V/0.8A power supply

CONNECTING AND OPERATING

1. Connect one cable from HDMI1.2 sink into the Converter input.

2. Connect VGA+SPDIF or YPbPr+SPDIF from monitor or projector into Converter outputs.

3. Connect 5V power supply to the HDCRBG0102 Converter.

SPECIFICATIONS: HDRC0102

HDMI resolution ………………………….............................................................. HDMI 1.2a

Input Video signal …………………………………… 0.5~1.5Volts p-p

Input DDC signal …………………………………………………………… 5Volts p-p (TTL)

VGA or YPbPr output………………………………Support up to UXGA and 1080p(60Hz)

Audio output….……………………………………………………………R/L Analog and optical

Max transmission bandwidth……………………………………………………5.1Gbps

Max working current……………………………………………………………………600mA

Power adapter format………………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/0.8A

Operating Temperature range………………………………………… (-15 to +55â„ƒ)

Operating Humidity range…………………………5 to 90%RH (No Condensation)

Dimension (L x W x H) …………………………………………………174x70x20 (mm)

Weight………………………………………………………………750g
