Specifications

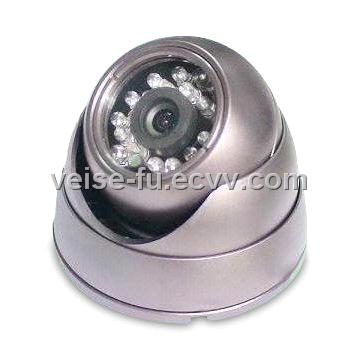

Vandal Waterproof Dome Camera with 1/3 Inch Sharp Color CCD
|
Model |
DF-9803 |
| Image Pick-up Device | 1/3 Inch Sharp Color CCD |
| Horizontal Resolution | 420 TV Lines |
| Number of Pixels | NTSC:510(H)×492(V); PAL:500(H)×582(V) |
| Scanning System |
NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec |
| Sync System | Internal Synchronization |
| Gamma Characterlstic | 0.45 |
| S/N Ratio | ≥48dB(AGC Off) |
| Electronic Shutter Time |
On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec |
| Usable Illumination | 0 lux with built-in IR 24 LED ON |
| IR projecct distance | 18 meters(24 Unit Infrared LED) |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Lens | Board Lens 3.6-8mm(optional) |
| Video Output | 1.0Vp-p 75 ohm |
| Gain Control(AGC) | Auto |
| Cable | BNC JACK |
| Operation Temperature | -10℃～+50℃ RH95% Max |
| Storage Temperature | -20℃～+60℃ RH95% Max |
| Power Supply | DC12V/800mA |
| Dimension | Ø94x68.5(H) mm |
| Weight | 420g |
