Gandong Mining Equipment Factory
China Manufacturer with main products: Mining Equipment, Gravity Seperator, Shaking Table, Diaphragm Jig, Spiral Concentrator, Gold Concentrator, Hydrocyclone, Flotation Machine |
| Place of Origin: | Jiangxi in China |
|---|
Specifications
Features
1. Big reduction ratio
2. Even granularity
3. Simple structure
4. Reliable working condition
5. Convenient repair and economic operation
6. Widely used for mine, smelting, building material, road, railway, irrigation works
7. Chemical and materials with compression strength no more than 320 Mpa.
Description

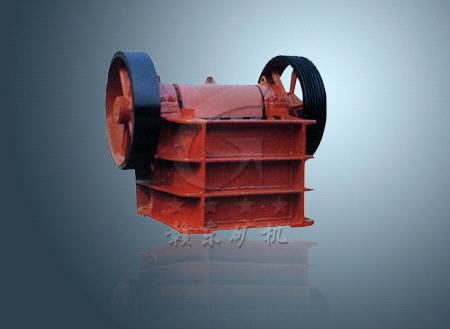

Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Technical Specifications
|
Type
|
Feed
Opening (mm) |
Max.
Feeding Size (mm) |
Adjusting
Range Of Discharge Opening (mm) |
Capacity
(t/h) |
Rotation
Speed Of Eccentric Shaft (r/min) |
Motor
Power (KW) |
Total
Weight (t) |
Dimensions
(mm) |
|
PE-150*250
|
150*250
|
125
|
10-40
|
1-3
|
250
|
5.5
|
0.6
|
720*660*850
|
|
PE-200*300
|
200*300
|
180
|
15-50
|
2-6
|
260
|
7.5
|
1
|
910*750*990
|
|
PE-200*350
|
200*350
|
180
|
18-70
|
3-10
|
260
|
11
|
1.3
|
1000*870*990
|
|
PE-250*400
|
250*400
|
210
|
20-60
|
5-20
|
300
|
15
|
2.8
|
1300*1090*1270
|
|
PE-400*600
|
400*600
|
340
|
40-100
|
16-60
|
275
|
30
|
7
|
1730*1730*1630
|
|
PE-500*750
|
500*750
|
425
|
50-100
|
40-110
|
275
|
55
|
12
|
1980*2080*1870
|
|
PE-600*900
|
600*900
|
500
|
75-200
|
60-200
|
250
|
75
|
20
|
2290*2290*2400
|
|
PE-750*1060
|
750*1060
|
630
|
80-140
|
115-330
|
250
|
110
|
29
|
2660*2430*2800
|
|
PE-870*1060
|
870*1060
|
660
|
200-260
|
290-336
|
250
|
110
|
31.5
|
2810*2430*2800
|
|
PE-900*1060
|
900*1060
|
685
|
230-290
|
160-400
|
250
|
110
|
33
|
2870*2420*2940
|
|
PE-900*1200
|
900*1200
|
750
|
95-165
|
220-450
|
200
|
110
|
52
|
3380*2870*3330
|
|
PE-1000*1200
|
1000*1200
|
850
|
195-265
|
315-500
|
200
|
110
|
55
|
3480*3876*3330
|
|
PE-1200*1500
|
1200*1500
|
1020
|
150-300
|
400-800
|
180
|
160
|
100.9
|
4200*3300*3500
|
|
PEX-150*750
|
150*750
|
120
|
18-48
|
8-25
|
320
|
15
|
3.8
|
1200*1530*1060
|
|
PEX-250*750
|
250*750
|
210
|
25-60
|
13-35
|
330
|
30
|
5.5
|
1380*1750*1540
|
|
PEX-250*1000
|
250*1000
|
210
|
25-60
|
16-52
|
330
|
37
|
7
|
1560*1950*1390
|
|
PEX-250*1200
|
250*1200
|
210
|
25-60
|
20-61
|
330
|
45
|
8.5
|
2140*1660*1500
|
|
PEX-300*1300
|
300*1300
|
250
|
20-90
|
16-105
|
300
|
75
|
11
|
2720*1950*1600
|
