Yucheng Dadi Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: disc harrow, disc plough, mower, rotary tiller, disc blade, seeder, harvester |

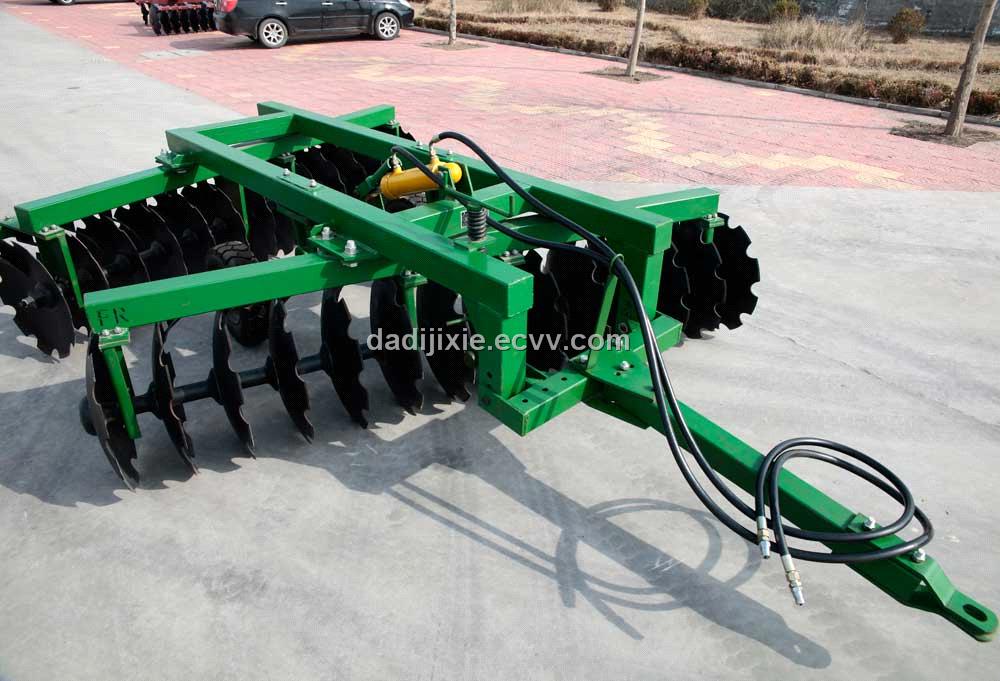

Heavy duty disc harrow
| FOB Price: | 2000.00 - 7000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | According to order quantity |
| Payment Terms: | L/C, T/T(Bank Transfer), / |
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | Iron shellframe box |
Specifications
Heavy duty disc harrow
Working width:1.8-7.0 m
Working depth:80-200 mm
No. of disc:16-56 discs
Matched power:60-180hp
The series heavy-duty off-set disc harrows are mainly used for cleaning away stubble of plants before tillage, or uncultivated land and in sticky heavy clay soil fields. They could also be used as a plough for primary tillage in dry cultivated fields. The surface of the field after harrowing is level and the crushing and clearing ability of the harrow is satisfactory.
The series products are all fitted with hydraulic rubber wheel for transportation. They are easy to be hook up, simple to be adjusted, and easy to be transported and change direction on the edge of fields.
| TECHNICAL SPECIFICATIONS FOR HEAVY-DUTY DISC HARROW | |||||||||
| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-5.3 | ||
| Overall dimension | cm | 480×200×134 | 482×244×134 | 532×288×134 | 532×332×134 | 582×376×134 | 716×560×150 | ||
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 | 3250-3300 | ||
| Working width | m | 1.8 | 2 | 2.5 | 3 | 3.4 | 5.3 | ||
| Working depth | cm | 20 | |||||||
| Blade spacing | mm | 230 | |||||||
| No.of disc | pc | 16 | 20 | 24 | 28 | 32 | 48 | ||
| Dia. Of disc | mm | 660 | |||||||
| Transport clearance | mm | >160 | |||||||
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 | 4 | ||
| Matched power | kw | 44-55 | 52.9-66.2 | 55-73.5 | 58.8-88 | 66.2-100 | >100 | ||
| Linkage | Trailed | ||||||||
