Henan Pingyuan Mining Machinery Co.Ltd
China Manufacturer with main products: vibrating screen, conveyor, feeder, universal conveyor |
Bucket Elevator
| Supply Ability: | 600 Set/Sets per Month |
|---|---|
| Shipping: | 30DAYS |
| Payment Terms: | L/C, T/T(Bank Transfer), D/P |
Related products from verified members
| Place of Origin: | Henan in China |
|---|---|
| Packaging Details: | as requested |
Specifications

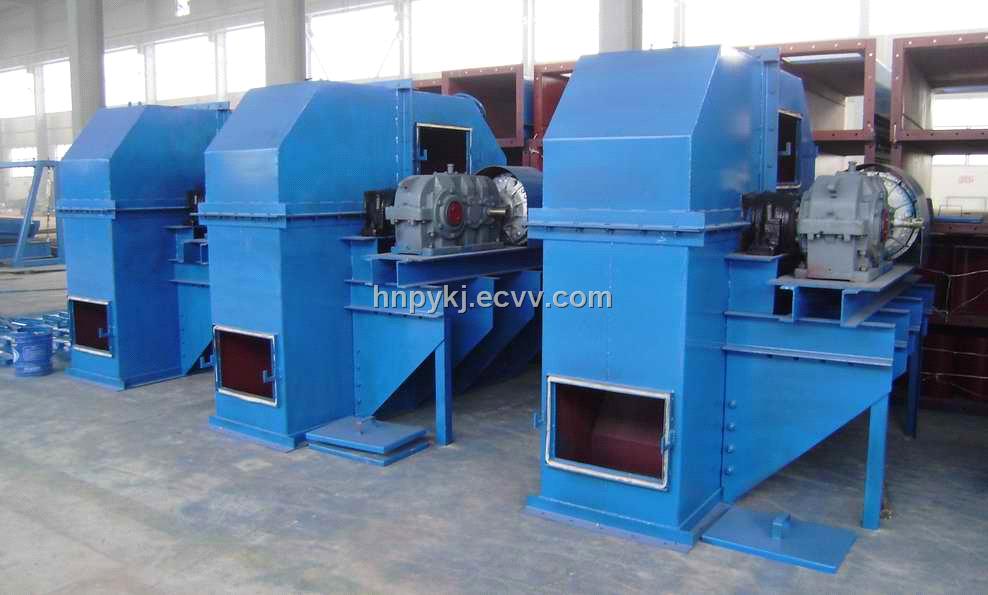

Product Profile of Bucket Elevator
This conveyor machine, TH bucket elevator is designed and made as the standard of JB3926-85 vertical bucket elevator, common bucket elevators in our nation are all vertical and new. It is used widely in metallurgy, chemical industry, building materials, mine, grain and vegetable oil, food, fodder, plastic and medicine etc.
Base Construction of Bucket Elevator
TH bucket elevator is made of running parts(hopper and tow rubber belt), upper section with driving pulley, down section with take-up pulley, middle case, driving device and back stop ,braking device, used in powder, graininess and patch delivering upward unpolishing and subpolishing scattered materials whose density is less than 1.5t/m³, such as coal, grail, dust coke.
Driving device is equiped with YZ reducer and ZQ reducer. YZ axis reducer is directly installed on axle head of principal axis and omit driving platform and coupler to make construction compact and weight light, reliable back stop with abnormal idler. The low noise, stable running and floating along with principal axis can eliminate erection stress.
The Features of Bucket Elevator
1.Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement. There is almost no feed back and excavating circumstance when materials are lifted, so invalid power is little.
2.Wide lifting range, little materials type and property requirement can not only lift general powder and granule materials, but also lift high polishing materials. Sound seal and little circumstance pollution.
3.Good running reliability, the advanced design principle and handling method assure reliability of whole machine running, the non-fault time exceed 20 thousand hours. Stable running make it reach higher lifting height.
4.The life is long, inflow feeding, non excavating with hopper and there is few extrusion and collision circumstance between materials. There is little materials sprinking during feeding and discharging to reduce machinery abrasion.
Technical Parameters of Bucket Elevator
Technical Parameters of Bucket Elevator
|
Series of bucket elevator
|
||||||
|
Type
Padameter
|
D
|
HL
|
PL
|
ZL
|
TD
|
TH
|
|
Construction
character
|
Adopt rubber belt
as traction compont
|
Forged circular chain as traction component
|
Plate type bush roller chain as traction component
|
Molten chain as traction component
|
Rubber belt as traction component
|
Circular chain as traction component
|
|
Applicable temperature
|
Temperature should be under 60oC .150oC is permited if adopt heat-proof rubber
|
Allow to transport high-teperature material
|
Tempetature of material should be below 250oC
|
Tempetature of material should be below 300oC
|
Temperature should be under 60oC. 200oC is permited if adopt heat-proof rubber
|
Tempetature of material should be under 250oC
|
|
Type
|
D160
D250
D350
D450
|
HL300
HL400
|
PL250
PL350
PL450
|
ZL25
ZL35
ZL45
ZL60
|
TD160
TD250
TD350
TD450
|
TH169
TH250
TH350
TH450
|
|
Lifting height(m)
|
4-30
|
4.5-30
|
5-30
|
8-29
|
4-30
|
4.5-30
|
|
Capacity
m³/h
|
3.1-66
|
16-47.2
|
22-100
|
55-160
|
3.1-66
|
|
